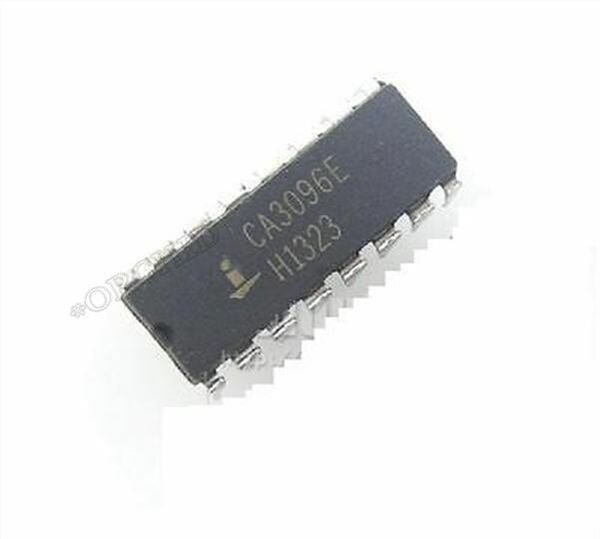

IC CA3096 (NPN/PNP Transistor Array)
BD 1.800
The CA3096C, CA3096, and CA3096A are general purpose high voltage silicon transistor arrays. Each array consists of five independent transistors (two PNP and three NPN types) on a common substrate, which has a separate connection. Independent connections for each transistor permit maximum flexibility in circuit design. Types CA3096A, CA3096, and CA3096C are identical, except that the CA3096A specifications include parameter matching and greater stringency in ICBO, ICEO, and VCE(SAT). The CA3096C is a relaxed version of the CA3096.
Applications
• Five-Independent Transistors
- Three NPN and
- Two PNP
• Differential Amplifiers
• DC Amplifiers
• Sense Amplifiers
• Level Shifters
• Timers
• Lamp and Relay Drivers
• Thyristor Firing Circuits
• Temperature Compensated Amplifiers
• Operational Amplifiers
Choose Quantity
Product Details
The CA3096 are general purpose high voltage silicon transistor arrays. Each array consists of five independent transistors (two PNP and three NPN types) on a common substrate, which has a separate connection. Independent connections for each transistor permit maximum flexibility in circuit design.
