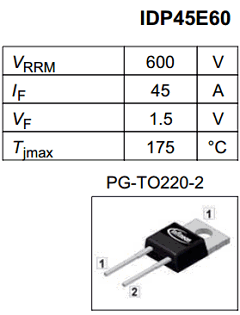

D45E60 600V, 45A
BD 2.500
General Purpose, Power, Switching
FAST SWITCH EMCON DIODE 600V 45A
Features
• 600V Emitter Controlled technology
• Fast recovery
• Soft switching
• Low reverse recovery charge
• Low forward voltage
• Easy paralleling
• Pb-free lead plating; RoHS compliant
• Halogen-free according to IEC61249-2-21
• Qualified according to JEDEC for target applications
Choose Quantity
Product Details
| Product Attribute | Attribute Value | Search Similar |
|---|---|---|
| Infineon | ||
| Diodes - General Purpose, Power, Switching | ||
| RoHS: | Details | |
| Switching Diodes | ||
| Through Hole | ||
| TO-220-2 | ||
| 600 V | ||
| 162 A | ||
| 71 A | ||
| Single | ||
| 140 ns | ||
| 2 V | ||
| 50 uA | ||
| - 55 C | ||
| + 175 C | ||
| IDP45E60 | ||
| Tube | ||
| Height: | 9.2 mm | |
| Length: | 9.9 mm | |
| Type: | Switching Diode | |
| Width: | 4.4 mm | |
| Brand: | Infineon Technologies | |
| Product Type: | Diodes - General Purpose, Power, Switching | |
| Factory Pack Quantity: | 500 | |
| Subcategory: | Diodes & Rectifiers | |
| Part # Aliases: | IDP45E60XKSA1 SP000683034 IDP45E6XK IDP45E60XKSA1 | |
| Unit Weight: | 6 g |
