Long Flex sensor
BD 20.000

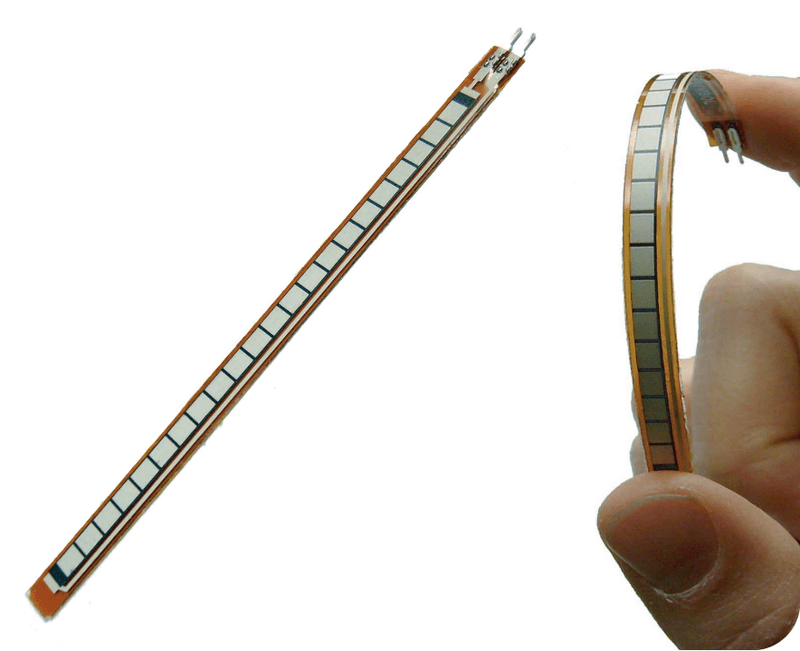

This sensor can detect flexing or bending in one direction. They were popularized by being used in the Nintendo Power Glove as a gaming interface.
These sensors are easy to use, they are basically resistors that change value based on how much they're flexed. If they're unflexed, the resistance is about ~10KΩ. When flexed all the way the resistance rises to ~20KΩ. They're pretty similar to FSRs so You can use an analog input on a microcontroller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.
The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief - such as clamping or gluing that part so as not to rip out the contacts!
These sensors are easy to use, they are basically resistors that change value based on how much they're flexed. If they're unflexed, the resistance is about ~10KΩ. When flexed all the way the resistance rises to ~20KΩ. They're pretty similar to FSRs so You can use an analog input on a microcontroller (with a pullup resistor) or a digital input with the use of a 0.1uF capacitor for RC timing.
The bottom part of the sensor (where the pins are crimped on) is very delicate so make sure to have strain relief - such as clamping or gluing that part so as not to rip out the contacts!
Choose Quantity
Product Details
Dimensions:
- Length: 112.5mm/4.4in
- Width: 6.38mm/0.25in
- Thickness: 0.5mm/0.2in
- Weight: 0.5g/0.017g
