Speaker 8 ohm 1w
Non-returnable
BD 2.000

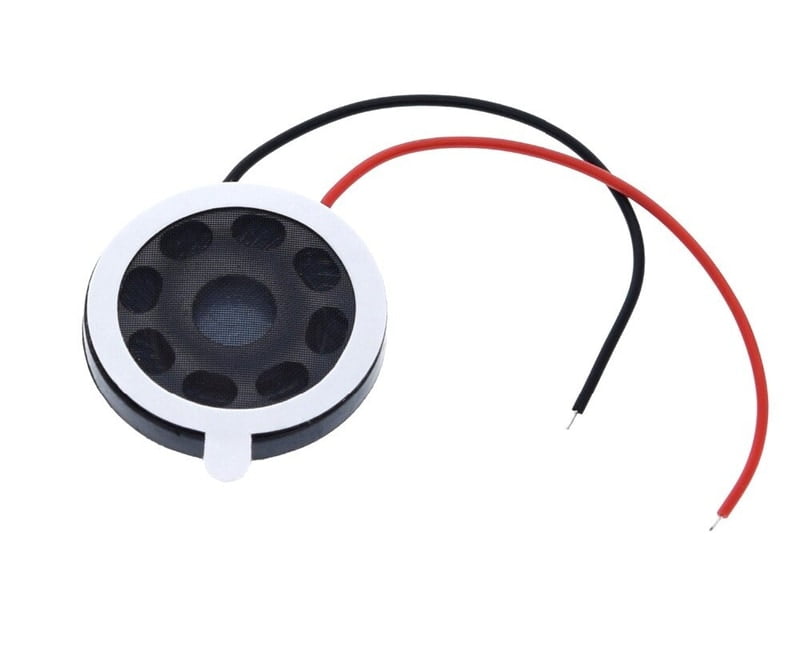

1.57" Round 8 Ohm Speaker - 1W
Installation Instructions
- Solder wires to the pads on the back of the speaker. For HiLine™ sound systems, use the wires from the two pin connector harness, designated for the speaker, to the pads. (Two pin connectors are included with all HiLine™ sound system but can also be purchased separately. See item #222 or #224)
- Create an enclosure for the speaker. This is best done with thick cardboard or plastic. Typically a circular hole is cut from cardboard and the edges of the speaker are glued to the cardboard so that the outside of the cone shows through the hole. Then the cardboard is cut to fit within the locomotive and glued in place.
- Connect the two pin harness to the speaker output of the sound system. (See your sound system instructions as the ports vary between systems)
Technical Specifications
| Item Number | 213 |
| System Compatibility | This speaker is fully compatible with all HiLine™ sound systems as well as any prior Dallee sound system. |
| Decibel output @ 1 watt | 104db |
| Frequency Response | 600 Hz - 6 kHz |
| Power Handling (RMS) | 1 Watt RMS, 1.5 Peak |
| Impedance | 8 Ohm |
| Diaphragm Material | Mylar |
| Physical Dimensions | 1.57 Inch Diameter x 0.2 Inches Deep |
