Endstop Switch Sensor
Non-returnable
BD 7.500
The mechanical endstop uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to LOW. There is also an LED on the board that will light up when the switch is activated.It uses a standard 4 pin .100"" pitch header and accepts a standard, old-style CD-ROM audio connector cable. Brand new and high quality. The endstop is a reliable endstop / switch solution for any type of 3D printers and other CNC and/ or 3D tools.
Features:
- High quality switching element, endstop mechanical limit switch for 3D printer.
- Customized high quality connection, using 22AWG wire, the copper wire inside is thick which can withstand 2A current, 300V voltage.
- Wide insulation temperature range: The insulation temperature can reach 80 degrees, much better than the ordinary thin copper wire.
- The wire is strong and not easy to pull off.
- Easy to use: the other side of the plug to do a whole, can be inserted directly to use.
Choose Quantity
Product Details
Connection:
- Red line connecting VCC (ramps of +)
- Black wire connecting GND (ramps of -)
- Green Line connecting SIGNAL (ramps in s)
Tips: Under normal circumstances, the system must be configured to at least three mechanical switches.

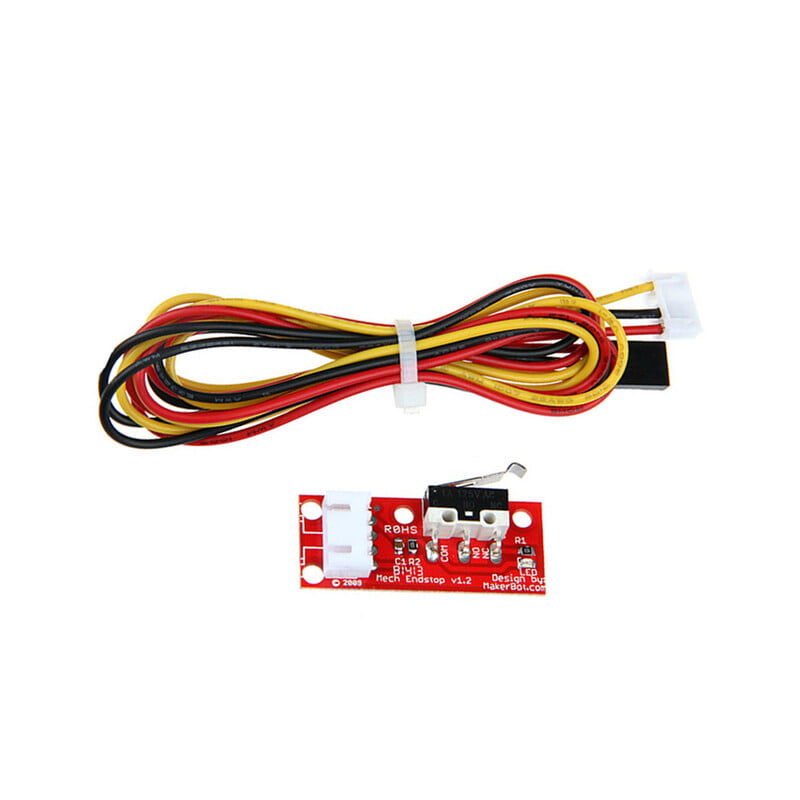

Package List: 1 x Mechanical Switch Endshop 1 x 3Pin Cable
