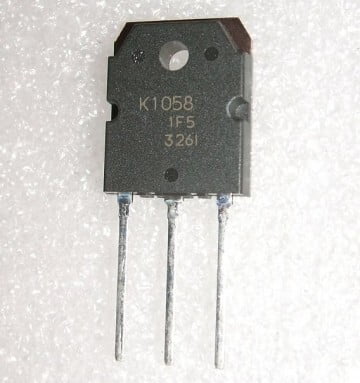

2SK1058 Trans MOSFET N-CH 160V 7A 3-Pin
BD 5.000
The FDA59N30 is a 300V N-channel UniFET™ MOSFET based on planar stripe and DMOS technology. This high voltage MOSFET is tailored to reduce on-state resistance and to provide better switching performance and higher avalanche energy strength. The body diode's reverse recovery performance of UniFET FRFET® MOSFET has been enhanced by lifetime control. Its trr is less than 100ns and the reverse dv/dt immunity is 15V/ns while normal planar MOSFETs have over 200ns and 4.5V/ns respectively. Therefore, it can remove additional component and improve system reliability in certain applications in which the performance of MOSFET's body diode is significant. This device family is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX and electronic lamp ballasts. This product is general usage and suitable for many different applications.
Key Features
- Good frequency characteristic
- High speed switching
- Wide area of safe operation
- Enhancement mode
- Good complementary characteristics
- Equipped with gate protection diodes
- Suitable for audio power amplifier
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Channel Mode | Enhancement | |
| Channel Type | N | |
| Max Processing Temp | 260 | |
| Maximum Continuous Drain Current | 7 A | |
| Maximum Drain Source Voltage | 160 V | |
| Maximum Gate Source Voltage | ±15 V | |
| Mounting | Through Hole | |
| MSL Level | MSL 1 - Unlimited | |
| Operating Temperature | -55 to 150 °C | |
| Product Dimensions | 15.6 x 4.8 x 18.9 mm | |
| Supplier Package | TO-3P | |
| Voltage | 600 |
