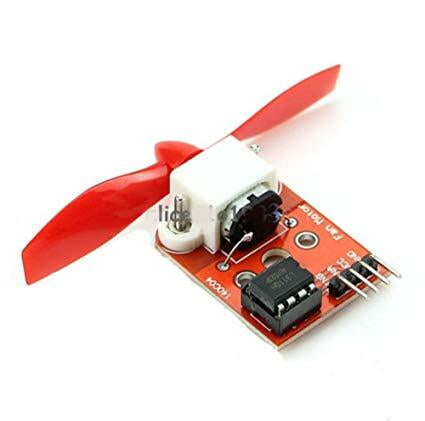

L9110 Fan Motor Module
BD 8.500
The ASIC device control and drive motor design two-channel push-pull power amplifier discrete circuits integrated into a monolithic IC, peripheral devices and reduce the cost, improve the reliability of the whole. This chip has two TTL / CMOS compatible with the level of the input, with good resistance; two output terminals can directly forward and reverse movement of the drive motor, it has a large current driving capability, each channel through 750 ~ 800mA of continuous current, peak current capability up to 1.5 ~ 2.0A; while it has a low output saturation voltage; built-in clamp diode reverse the impact of the current release inductive load it in the drive relays, DC motors, stepper motor or switch power tube use on safe and reliable. L9110 is widely used in toy car motor drives, stepper motor drive and switching power tube circuit.
Choose Quantity
Product Details
- High quality product.
- L9110 unit, speed control with ZhuanPei mounting holes, screw compatible steering wheel control, high quality, high efficiency.
- Can be easily blown 7.9 in away, the lightest flame can be used for fire fighting robots, design and development robot.
