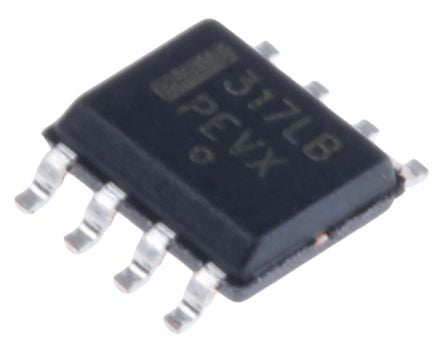

317LB 1.2 to 37V Linear Voltage Regulator, 100mA, 1-Ch, Adjustable
Non-returnable
BD 1.500
Out of stock
1.2 – 37 V Linear voltage regulator, ON Semiconductor
ON Semiconductor LM317 series is an adjustable Linear Voltage Regulator. The 3-terminal positive voltage regulator can offer an output current of 1.5A and more with an output voltage ranging between 1.2 to 37 V. The easy to use LM317 adjustable voltage regulator can be used in various applications such as on-card regulation and being utilised as a programmable output regulator it can be used as a precision current regulator by attaching a fixed resistor between the adjustment and output.
Key Features
- Output Current in Excess of 100 mA
- Output Adjustable Between 1.2 V and 37 V
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe-Area Compensation
- Floating Operation for High Voltage Applications
- Standard 3-Lead Transistor Package
- Eliminates Stocking Many Fixed Voltages
- Pb-Free Packages are Available
- NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Accuracy (+/-) | 4 % | |
| Function | Standard | |
| Junction to Ambient | 180 °C/W | |
| Junction to Case | 45 °C/W | |
| Lead Finish | Matte Tin | |
| Line Regulation | 0.04 %/V | |
| Load Regulation | 0.5 % | |
| Max Processing Temp | 260 | |
| Mounting | Surface Mount | |
| MSL Level | 1 | |
| Number of Outputs | 1 | |
| Operating Temperature | -40 to 125 °C | |
| Output Current | 0.1 A | |
| Output Type | Adjustable | |
| Output Voltage | 1.2 to 37 V | |
| Pin Count | 8 | |
| Polarity | Positive | |
| Product Dimensions | 5 x 4 x 1.5 mm | |
| Reference Voltage | 1.3 V | |
| Supplier Package | SOIC N |
