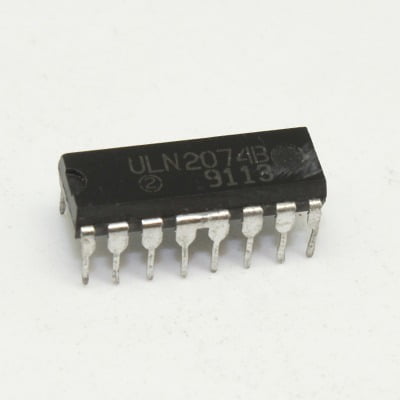

ULN2074B (50V, 1.5A QUAD DARLINGTON SWITCHES)
BD 2.800
Designed to interface logic to a wide variety of high current,highvoltageloads,thesedeviceseachcontain four NPN darlington switches delivering up to 1.5 A with a specified minimum breakdownof 50 V and a sustaining voltage of 35 V measured at 100 mA. The ULN2064B, ULN2066B, ULN2068B and ULN2070B contain integral suppression diodes for inductive loads have common emitters. The ULN2074B and ULN2076B feature isolated darlington pinouts and are intended for applications suchasemitterfollowerconfigurations.Inputsof the ULN2064B, ULN2068B and ULN2074B are compatible with popular 5 V logic families and the ULN2066B and ULN2076B are compatible with 6- 15 V CMOS and PMOS. Types ULN2068B and ULN2070Bincludea predriverstageto reduceloading on the control logic.
Choose Quantity
Product Details
Features:
. OUTPUT CURRENT TO 1.5 A EACH DARLINGTON
. MINIMUM BREAKDOWN 50 V
. SUSTAINING VOLTAGE AT LEAST 35 V
.INTEGRAL SUPPRESSION DIODES
(ULN2064B, ULN2066B, ULN2068B and
ULN2070B)
.ISOLATED DARLINGTON PINOUT
(ULN2074B, ULN2076B)
. VERSIONS COMPATIBLE WITH ALL POPULAR LOGIC FAMILIES
