TDA2009A (11w Stereo Audio Power Amplifier)
BD 3.600
The TDA2009A is class AB dual Hi-Fi Audio power amplifier. It assembled in Multiwatt package, specially designed for high-quality stereo application as Hi-Fi and music center.

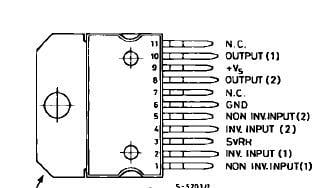

We can see its shape here.
Choose Quantity
Product Details
Applications
Audio,
Signal Processing,
Consumer
Electronics
Specifications:
- DC power supply: 8V to 24V at 1A to 2A
- The output power rate.
10W RMS/channel, 4 ohms load, 24V DC power supply.
6W RMS/Chanel, 8 ohms load, 24V DC power supply.
4W RMS/channel, 4 ohms load, 12V DC power supply. - S/N ratio: more 75 dBA re. 10W output.
- Frequency response: 10Hz to 50kHz -3dB.
- 0.351% distortion at a frequency 1 kHz
- Gain: 36dB.
- Input: 100mV for full output.
