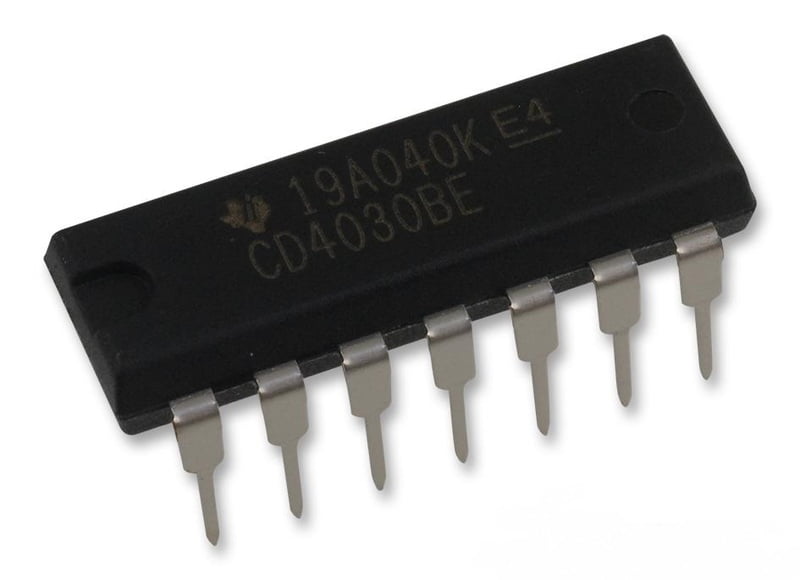

IC CD4030, 4030, Quad 2-Input Exclusive OR Gate, EXOR Gate

CD4030 types consist of four independent Exclusive-OR gates. THe CD4030 provides the system designer with a means for direct implementation of the Exclusive-OR function.

The CD4030 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).

Features:-

• Medium-speed operation—tPHL, tPLH = 65 ns (typ.) at VDD = 10 V, CL = 50 pF
• 100% tested for quiescent current at 20 V
• Standardized, symmetrical output characteristics
• 5-V, 10-V, and 15-V parametric ratings
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA     at 18 V and 25°C
• Noise margin (over full package-temperature range) =
  1 V at VDD = 5 V
  2 V at VDD = 10 V
  2.5 V at VDD = 15 V
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices"
• Applications:
  • Even and odd-parity generators and checkers
  • Logical comparators
  • Adders/subtractors
  • General logic functions
