5K Potentiometer
Non-returnable
BD 1.500

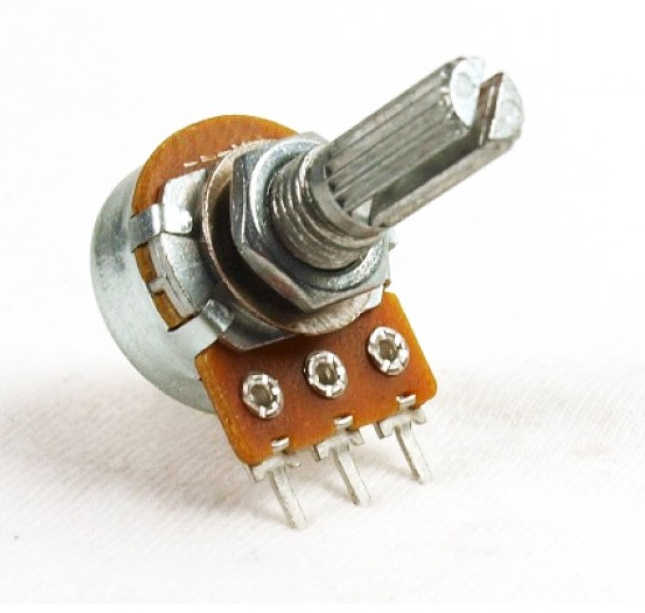

The PDB181-K420K-502B is a Rotary Potentiometer with a carbon element and knurled adjustment. This PDB18 series 17mm potentiometer features dual section, PC pins vertical/down facing terminal, 18 toothed serration metal knurled type standard shaft. One flat washer and mounting nut supplied per potentiometer with bushing.
- Wide range of resistance tapers
- 10 to 150gf-cm Rotational torque
- 15000 cycles Rotational life
- -10 to 50°C Operating temperature range
Choose Quantity
Product Details
Features
■ Single and dual section control
■ Metal shaft styles
■ Carbon element
■ Center and multiple detent options
■ Wide range of resistance tapers
■ Plain or knurled shaft options
