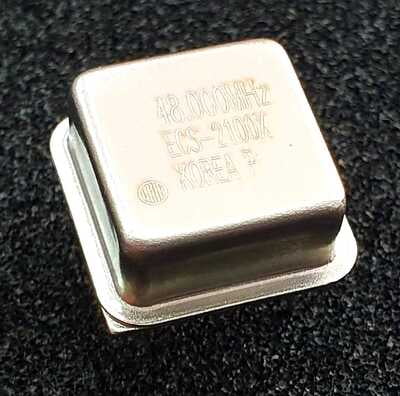

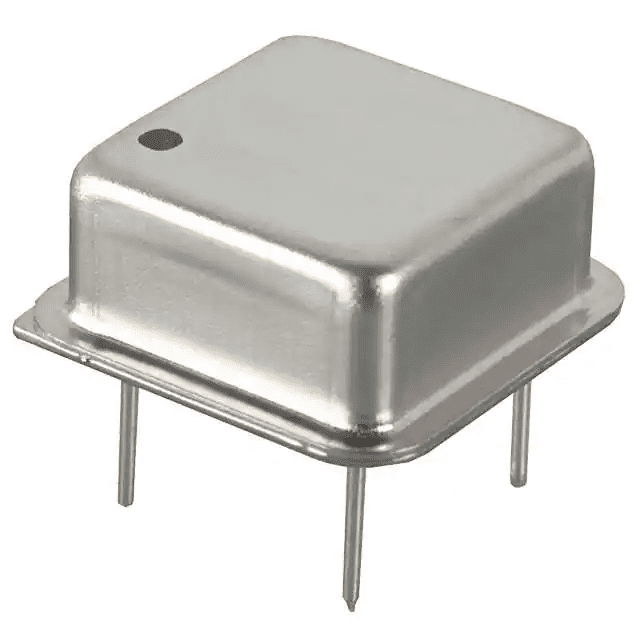

ECS-2100AX-480 Oscillator XO 48MHz
BD 4.000
The ECS-2100X Series clock oscillator offers low current drain and is compatible with HCMOS/TTL logic. The metal package with pin #4 case ground acts as a shielding to minimize radiation.
Key Features
- HCMOS/TTL logic compatible
- Wide frequency range
- Low power consumption
- Resistance weld package
- 3.3V operation (optional)
- PbFree/RoHS Compliant
Choose Quantity
Product Details
Technical Attributes
| Description | Value | |
|---|---|---|
| Frequency Stability | ±100 ppm | |
| Input Current | 33 mA | |
| Input Voltage | 5 V | |
| Load Capacitance | 50 pF | |
| Max Processing Temp | 260 °C | |
| Mounting | Through Hole | |
| Operating Temperature | 0 to 70 °C | |
| Output Level | HCMOS/TTL | |
| Pin Count | 4 | |
| Product Dimensions | 13.2 x 13.2 x 5.4 mm | |
| Standard Frequency | 48 MHz | |
| Supplier Package | DIP |
