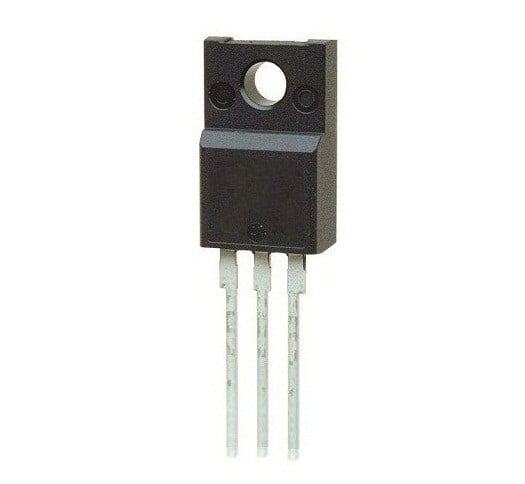

22NM60N Mosfet N-channel 600V
Non-returnable
BD 2.500
These devices are made using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most demanding high efficiency converters.
Choose Quantity
Product Details
ype Designator: 22N60
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 446 W
Maximum Drain-Source Voltage |Vds|: 600 V
Maximum Gate-Source Voltage |Vgs|: 30 V
Maximum Drain Current |Id|: 22 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 300 nS
Drain-Source Capacitance (Cd): 350 pF
Maximum Drain-Source On-State Resistance (Rds): 0.26 Ohm
