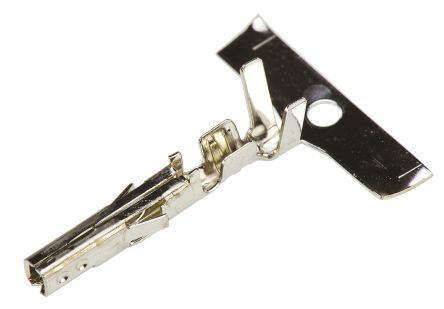

Connector Female, 24-18AWG, 9A
Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.
Features and Benefits
Features and Benefits
- Multiple points of contact for reliable electrical connection
- Locking tangs for secure connection in housing
- Range of platings and wire
Applications
- Automotive
- Industrial
- Industrial Automation
- Medical
- Communications and Networking
- Consumer Electronics
| Attribute | Value |
|---|---|
| Gender | Female |
| For Use With | Dual Row, Mini-Fit BMI Panel Mount, Mini-Fit Jr. Plug Housing, Mini-Fit Jr. Receptacle Housing, Mini-Fit TPA |
| Series | Mini-Fit |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Contact Material | Brass |
| Series Number | 5556 |
| Maximum Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
