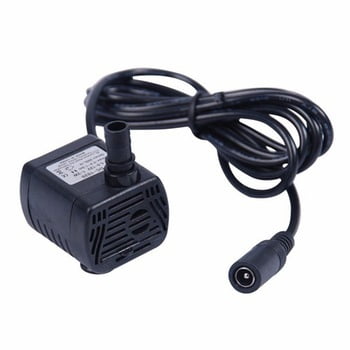

Brushless Submersible Pump Dc-1020 5.5-12v
BD 9.500
Brushless submersible pump DC-1020 5.5-12V DC use for household small appliances solar pumps etc...
Features:
1. Copper coil, stable speed.
2. Silent design, anti - damping stainless steel shaft.
3. Adopt high strength stainless steel shaft, wear resistance, no rust, no addition, compared with the same power normal submersible pump, head with high, larger flow.
4. Energy saving save electricity.
5. Flow control valve, control the size of water.
6. Adopt high strength wear-resistant shaft core strong magnetic force to turn, high efficiency energy-saving service life long, strong running power
7. The sealing of ring chamber is strengthened, the insulation performance is good without leakage, the security is strong, and the use is reliable.
8.The filter area is increased, the water flow is more unobstructed, the overall circulation effect is accelerated, and the filter is cleaner. The service life is enhanced, and the maintenance cycle is extended.
9.The pump adsorption glass ceramics and other smooth materials can reduce vibration, pump more silent.
Method of use:
1. The intake is in the form of a filter cover, which can effectively filter most of the impurities, but also pay attention to the cleaning of the water source.The pump belongs to centrifugal pump, which needs to use the water inlet below the liquid level.
2. The pump cannot run without water or without water.
3. The head is the height where the outlet is connected with the corresponding diameter ice pipe and the water column in the water pipe is the vertical height where the water jet is not connected with the water pipe.
4. The bottom of the pump is equipped with two suckers, which can be adsorbed on smooth materials like glass and ceramics to reduce vibration and make the pump quieter.
5. A power adapter is needed to connect a household socket, unlike an ac pump, where dc is non-leakage.
6. The pump should be powered according to the rated voltage. Do not overpressure or undervoltage operation for a long time. When the solar panel or battery is connected, the controller can be used.
1. Copper coil, stable speed.
2. Silent design, anti - damping stainless steel shaft.
3. Adopt high strength stainless steel shaft, wear resistance, no rust, no addition, compared with the same power normal submersible pump, head with high, larger flow.
4. Energy saving save electricity.
5. Flow control valve, control the size of water.
6. Adopt high strength wear-resistant shaft core strong magnetic force to turn, high efficiency energy-saving service life long, strong running power
7. The sealing of ring chamber is strengthened, the insulation performance is good without leakage, the security is strong, and the use is reliable.
8.The filter area is increased, the water flow is more unobstructed, the overall circulation effect is accelerated, and the filter is cleaner. The service life is enhanced, and the maintenance cycle is extended.
9.The pump adsorption glass ceramics and other smooth materials can reduce vibration, pump more silent.
Method of use:
1. The intake is in the form of a filter cover, which can effectively filter most of the impurities, but also pay attention to the cleaning of the water source.The pump belongs to centrifugal pump, which needs to use the water inlet below the liquid level.
2. The pump cannot run without water or without water.
3. The head is the height where the outlet is connected with the corresponding diameter ice pipe and the water column in the water pipe is the vertical height where the water jet is not connected with the water pipe.
4. The bottom of the pump is equipped with two suckers, which can be adsorbed on smooth materials like glass and ceramics to reduce vibration and make the pump quieter.
5. A power adapter is needed to connect a household socket, unlike an ac pump, where dc is non-leakage.
6. The pump should be powered according to the rated voltage. Do not overpressure or undervoltage operation for a long time. When the solar panel or battery is connected, the controller can be used.
Choose Quantity
Product Details
Specification:
| Model | JT-1020 |
| Type | 5.5x2.1 female plug |
| Material | Engineering plastics |
| Rated voltage | DC12V |
| No-load rated current | Within 0.1A |
| Rated current at load | 0.35A |
| Discharge water without load | 280L/H |
| Power | 1W-4W |
| Drive mode | Electromagnetic |
| Environmental humidity | 45% - 90% |
| Hydraulic head | 160mm |
| Size | 36.5x34.5x41mm |
| Diameter of silicone tube | Internal: 7 mm External: 9 mm |
| Pump head diameter | 8mm |
| Usage | Diving |
| Water temperature | - 20 ° C to 60 ° C |
| Maximum flow | 250L/H |
| Noise | 40DB MAX background noise (within 30DB. 0.5m) |
| Continuous service life | over 20000 hours |
| Motor | Brush motor |
| Wire length | 1.5m |
| Use of fluids | Tap water, groundwater, seawater, |
