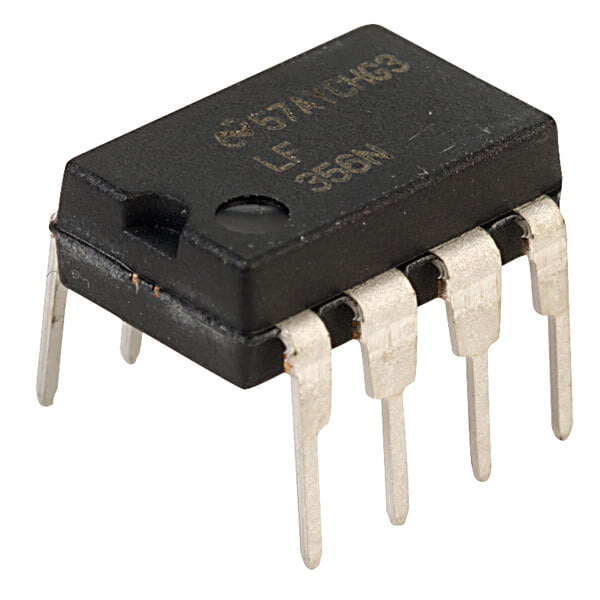

LF356N (IC, OP AMP, SINGLE, JFET, 5MHZ, 5MA)

Name: LF356N (IC, OP AMP, SINGLE, JFET, 5MHZ, 5MA)
SKU: LF/356N
Price: 2.0 BHD
Availability: InStock

BD 2.000

These are the first monolithic JFET input operational amplifiers to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET Technology). These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Key Features

Advantages

Replace Expensive Hybrid and Module FET Op Amps

Rugged JFETs Allow Blow-Out Free Handling Compared with MOSFET Input Devices

Excellent for Low Noise Applications Using Either High or Low Source Impedance—Very Low 1/f Corner

Offset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic Amplifiers

New Output Stage Allows Use of Large Capacitive Loads (5,000 pF) without Stability Problems

Internal Compensation and Large Differential Input Voltage Capability

Choose Quantity

+ Add to Cart

Product Details

Technical Attributes

	Description	Value
	Lead Finish	Tin/Lead
	Max Processing Temp	260
	Maximum Input Bias Current	0.0002@±15V uA
	Maximum Input Offset Voltage	10@±15V mV
	Maximum Operating Supply Voltage	±18 V
	Maximum Power Dissipation	670 mW
	Minimum CMRR	80 dB
	Minimum PSRR	80 dB
	Mounting	Through Hole
	MSL Level	1
	Number of Channels per Chip	1
	Operating Supply Current	10@±15V mA
	Operating Supply Voltage	±18 V
	Operating Temperature	0 to 70 °C
	Pin Count	8
	Power Supply Type	Dual
	Product Dimensions	9.27 x 6.35 x 3.3 mm
	Shut Down Support	No
	Supplier Package	PDIP
	Technology	BiFET
	Type	General Purpose Amplifier
	Typical Gain Bandwidth Product	5 MHz
	Typical Input Noise Voltage Density	15@±15V nV/rtHz
	Typical NonInverting Input Noise Current Density	0.01@±15V pA/rtHz
	Typical Slew Rate	12@±15V V/us
	Typical Voltage Gain	106.02 dB
