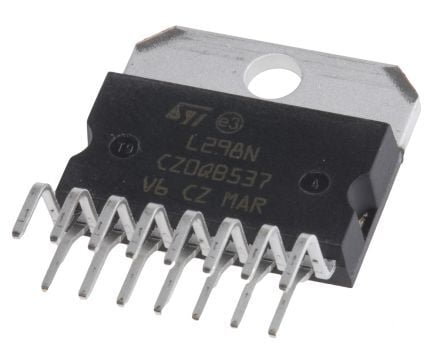

L298N (Dual Full Bridge Driver ICs)

Dual Full Bridge Driver ICs
Vertical Mount

Features:
- Operating Supply Voltage up to 46V
- Total DC Current up to 4A
- Low Saturation Voltage
- Overtemperature Protection
- Logical "0" Input Voltage up to 1.5V (High Noise Immunity)

Maximum Ratings:
Power Rating: 50.0V
Logic Supply Voltage: 7.0V
Input and Enable Voltage: -0.3V to 7.0V
Peak Output Current (each Channel)
– Non Repetitive (t = 100us): 3.0A
– Repetitive (80% on –20% off; ton = 10ms): 2.5A
– DC Operation: 2.0A
Sensing Voltage: -1 to 2.3V
Total Power Dissipation (Tcase = 75 Deg. C): 25.0W
Junction Operating Temperature: -25 to 130 Deg. C

Electrical Characteristics (VS = 42V, VSS = 5V, TJ="25" deg. C unless otherwise noted):
Supply Voltage (Pin 4): 46.0V max.
Logic Supply Voltage (Pin 9): 4.5 to 7.0V
Quiescent Supply Current (pin 4)(Ven = H; IL = 0 Vi = L): 22mA max.
Source Saturation Voltage (IL = 1A): 0.95 to 1.7V
Sink Saturation Voltage (IL = 1A): 0.85 to 1.6V

Full Datasheet: ST Micro Integrated Monolithic Circuit IC L298N
