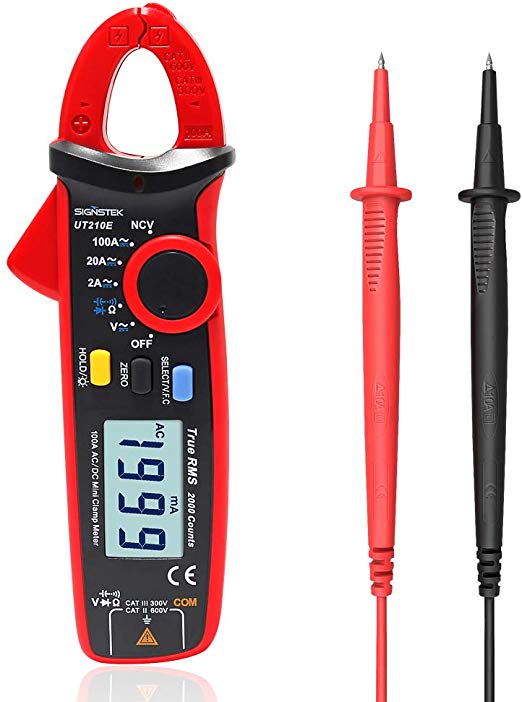

Mini Digital Clamp Meter 600V AC/DC, 100A
BD 45.000
UT210 series mini clamp meters are designed to work well in limited space environments.
These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
Choose Quantity
Product Details
Features:
Display Count: 2000
Auto Range: Yes
Jaw Capacity: 17mm
True RMS: Yes
Diode: Around 3.0V
V.F.C.: Yes
NCV: Yes
Data Hold: Yes
Zero Mode: Yes
LCD Backlight: Yes
Auto Power Of: Around 15 Minutes
Continuity Buzzer: Yes
Low Battery Indication: ≤2.5V
Input Protection: Yes
Input Impedance for DCV: ≥10MΩ
Specifications:
AC Current (A）:2A/20A/100A ±(2.5%+5)
DC Current (A):2A/20A/100A ±(2%+3)
AC Voltage (V):2V/20V200V/600V ±(1.0％＋3）
DC Voltage (V):200mV/2V/20V200V/600V ±(0.7%+3)
Resistance (Ω):200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(1.0％+2）
Capacitance (F):2nF/20nF/200nF/2μF/20μF/200μF/2mF/20mF ±(4%+5)
General Characteristic:
Product Net Weight: 170g
Product Size: 175mm * 60mm * 33.5mm
Power: AAA 1.5V x 2
LCD Size: 39.3mm * 21.5 mm
Product Color: Red and Grey
Package Size: 18.6 * 7.2 * 5.9cm / 7.3 * 2.8 * 2.3in
Package Weight: 328g / 11.6oz
Package List:
1 x UNI-T UT210E Mini Clamp Meters
1 x Test Leads
1 x English User Manual
