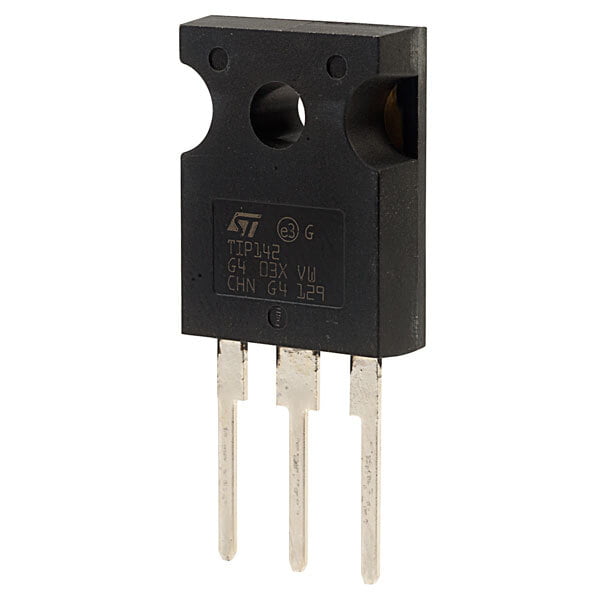

TIP142 (NPN 100V, 10A)
BD 0.600
The TIP142 is a 100V NPN Complementary Darlington Power Transistor manufactured in planar technology with "base island" layout and monolithic Darlington configuration. The transistor shows exceptional high gain performance coupled with very low saturation voltage. Fast switching times and very low saturation voltage resulting in reduced switching and conduction losses.
- Monolithic Darlington configuration
- Integrated anti-parallel collector-emitter diode
- Well-controlled hFE parameter for increased reliability
Applications
Industrial
Choose Quantity
Product Details
Characteristics of the TIP142 bipolar transistor
- Type - NPN
- Collector-Emitter Voltage: 100 V
- Collector-Base Voltage: 100 V
- Emitter-Base Voltage: 5 V
- Collector Current: 10 A
- Collector Dissipation - 125 W
- DC Current Gain (hfe) - 1000
- Operating and Storage Junction Temperature Range -65 to +150 °C
- Package - TO-247
- Pb-Free Packages are Available (TIP142G)
