Temperature Controller Thermostat REX-C100 + Max.40A SSR Relay
BD 28.500

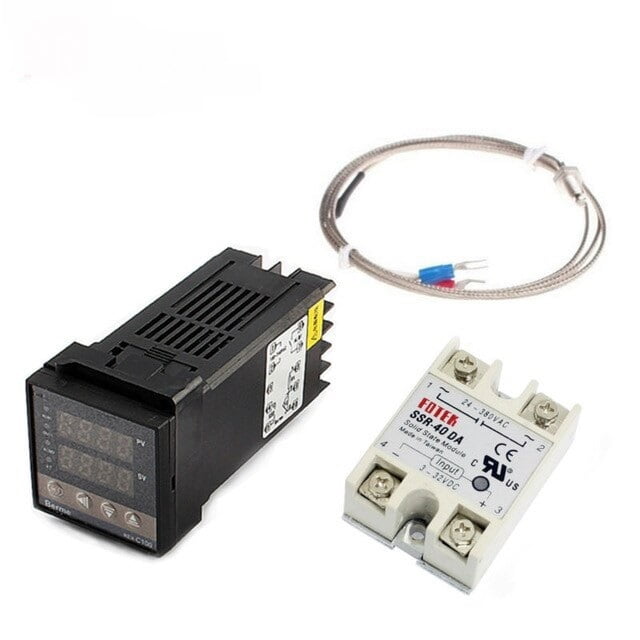

Temperature Controller PID REX-C100 AC100-240V and a 40A Solid State Relay with K Thermocouple GD 0 to 400°C
Features:
REX-C100 Temperature Controller
- 1.Measuring accuracy: ±0.5%FS
- 2.Cold-end compensation tolerance: ±2 (can be modified by software in 0~50 )
- 3.Resolution: 14 bit
- 4.Sampling cycle: 0.5 Sec
- 5. Power : AC 220V 50/60HZ
- 6.Process value (PV),Setting value (SV)
- 7.Output, alarm and self-tuning can be indicated by:LED
- 8.PIN control (including ON/OFF, step-type PID and continuous PID)
- 9.Self-tuning control
- 10.Relay output: contact capacity 250V AC 3A (resistive load)
- 11.Alarm function output: 2 way
- 12.Proportional band (P): 0~full range (ON/OFF control when set to 0)
- 13.Detective temperature range: 0 to 400
- 14.Insulation resistance: >50M ohm(500V DC)
- 15.Insulation resistance : 1500V AC/min
- 16.Insulation resistance : Power Consumption < 10 VA
- 17.Service environment: 0~50
- 18.environment with no corrosive gas 30~85% RH
K Thermocouple Probe Cable
- 1.Length: 1M
- 2.Sensor diameter:4.5mm
- 3.Temperature rang :0-400
- 4.Internal Insulation: Fiberglass
- 5.External Shielding: Insulated Shielding
Max.40A SSR
- 1.Output Current:40A
- 2.Input Voltage:DC 3-32V
- 3.Output Voltage:24-380V AC
- 4.Output Voltage Range:Standard Type
Package Included:
1 X PID Temperature Controller
1 X K Type Probe Sensor
1 X Max.40A SSR
