M27C512-12F1 (512 Kbit (64K x8) UV EPROM and OTP EPROM)
BD 5.000
The M27C512 is a 512 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for applications where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits.

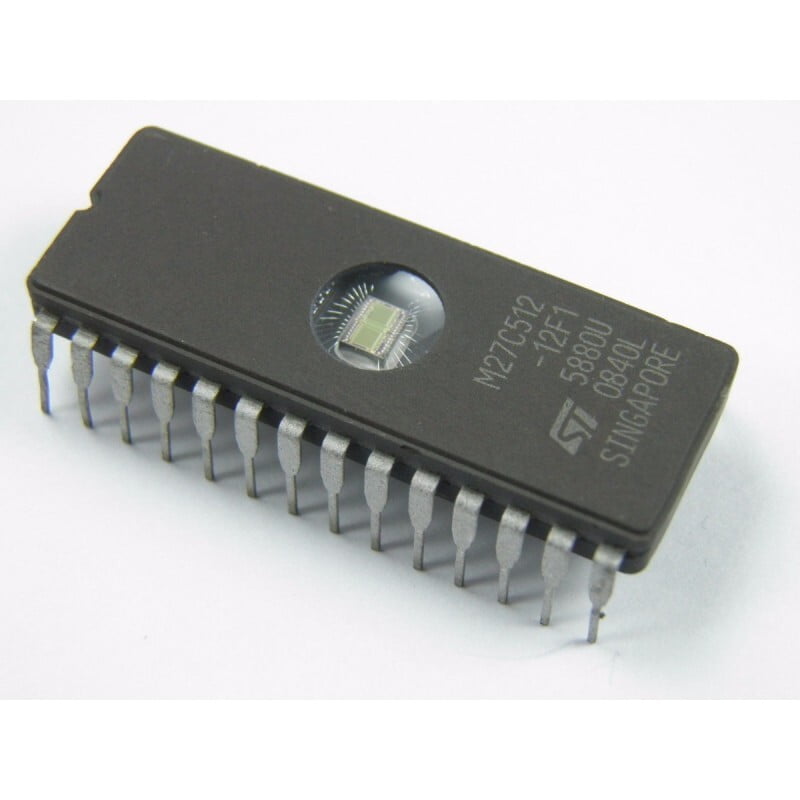

The FDIP28W (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
For applications where the content is programmed only one time and erasure is not required, the M27C512 is offered in FDIP28W, PDIP28, and PLCC32 packages. In order to meet environmental requirements, ST offers the M27C512 in ECOPACK® packages. ECOPACK packages are Lead-free. The category of second Level Interconnect is marked on the package and on the inner box label, in compliance with JEDEC Standard JESD97. The maximum ratings related to soldering conditions are also marked on the inner box label. ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com.
Choose Quantity
Product Details
Features
■ 5V ± 10% supply voltage in read operation
■ Access time: 45 ns
■ Low power “CMOS” consumption:
– Active current 30 mA
– Standby current 100 µA
■ Programming voltage: 12.75 V ± 0.25 V
■ Programming time around 6 s.
■ Electronic Signature
– Manufacturer code: 20h
– Device code: 3Dh
■ Packages – ECOPACKÆ versions
