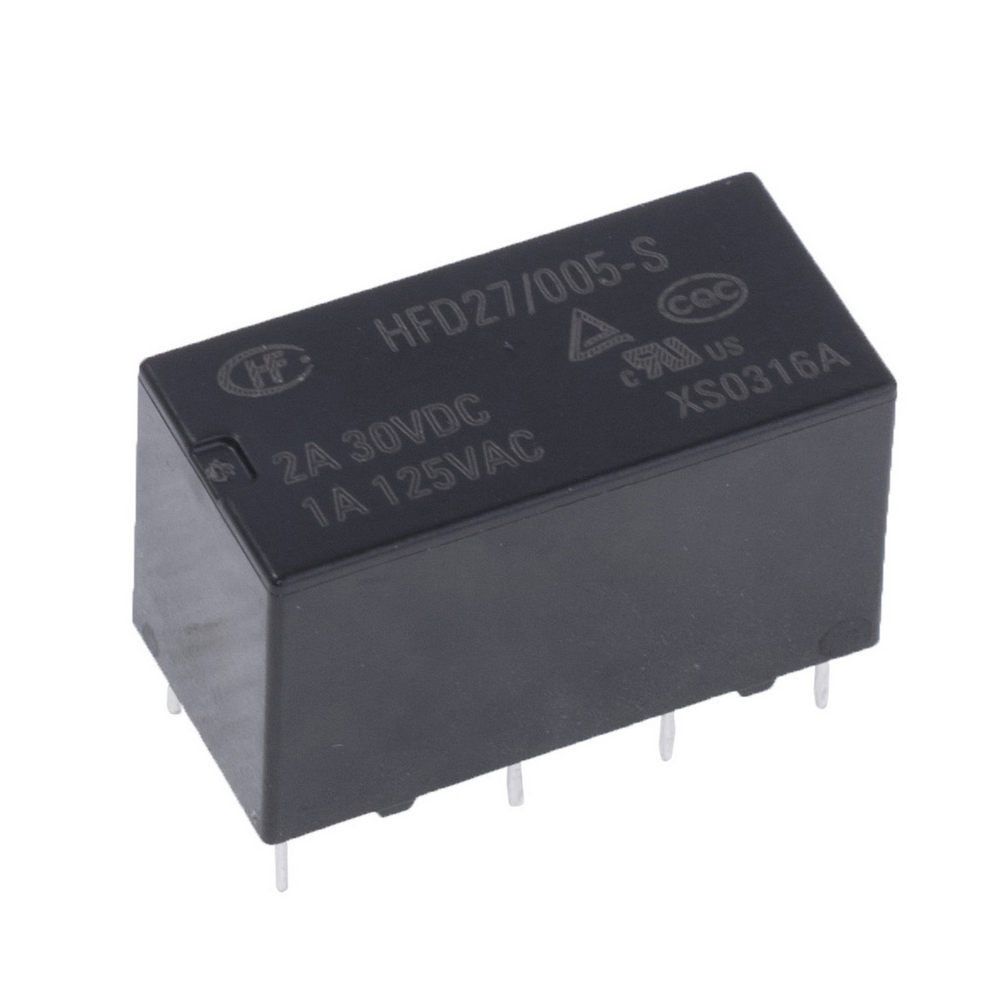

Relay 2A, 30VDC 1A, 125VAC (HFD27/005-S)
BD 3.000
Hongfa signal relay series HFD27
Subminiature signal relays with the contact form DPDT (2 form C) and the contact material AgNi (Au plated). These relays have a high sensitivity (200mW), a switching current of 2A and are epoxy sealed for automatic cleaning wave soldering. We offer the types HDF27/005-S, HDF27/012-S and HDF27/024-S of this series.
- contact: DPDT (2 form C)
- contact material: AgNi, Au plated
- maximal switching current: 2A
- maximal witching voltage: 120V DC / 240V AC
- rated power: 200mW
- maximal switching power: 125VA/60W
- minimal insulation resistance: 1000MΩ
- maximal operate/release time: 7/4ms
- testing voltage coil/contact (1 Min.): 1500V AC
- testing voltage open contact (1Min.): 1000V AC
- minimal mechanical lifetime: 1x108 operations
- minimal electrical lifetime: 1x105 operations
- operating temperature: -40 to +85°C
- weight (approximately): 5g
Choose Quantity
Product Details
HFD27 Series SUBMINIATURE SIGNAL RELAY
Contact Data
- 2 Form C configuration
- High switching capacity: 125VA/60W
- Matching 16 pin IC socket
- Bifurcated contacts
- Epoxy sealed for automatic-wave soldering and cleaning
- Environmental friendly product (RoHS compliant)
- Outline Dimensions: (20.2 x 10.0 x 11.5) mm
Contact Data
- Contact Arrangement? 2C
- Contact Resistance: AgNi+Au plated
- Contact Rating:
- 1A 125VAC
- 2A 30VDC
- Max. switching Voltage: 240VAC/120VDC
- Max. Switching Power: 125VA / 60W
- Mechanical Endurance: 1×10^8OPS
- Electrical Endurance: 1×10^5OPS(2A 30VDC)
