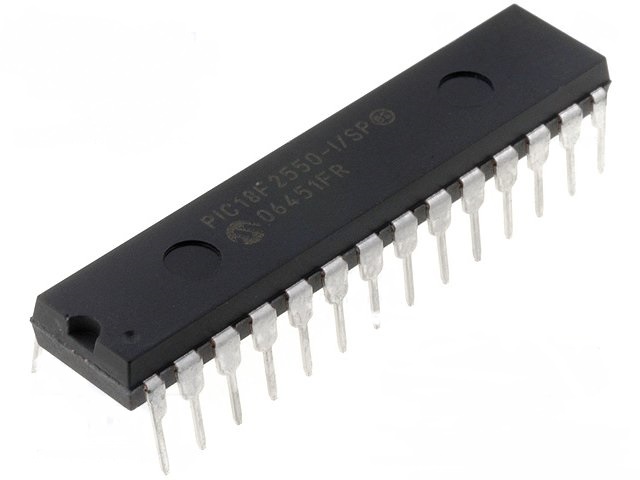

PIC18F2550 (Enhanced Flash, USB Microcontrollers)

Name: PIC18F2550 (Enhanced Flash, USB Microcontrollers)
SKU: PIC/18F/2550
Price: 8.9 BHD
Availability: InStock

BD 8.900

‘PIC’ is the popular microcontroller series from MICROCHIP and PIC18F2550 is one of the popular microcontroller from ‘PIC18F’ family. PIC18F2550 is a High-Performance, Enhanced flash, USB Microcontroller with NANO-Watt-Technology. This is an 8-bit microcontroller popular among makers and engineers due its features and low cost. PIC18F2550 comes in various packages like DIP, QPF and QPN and can be selected according to the project requirement.

PIC18F2550is one of the cheapest microcontrollers present in the market to work with and have a lot of tutorials and support available on the Internet to help beginners. The controller has 32Kbytes flash memory which is enough for many applications. Along with 24 programmable Input/output pins, it can interface many peripherals easily. With Watchdog timer to reset under error automatically the controller can be used on systems with no human interference. Having USB interface feature you can communicate with controller from any PC without any hassle. With many features added together further promotes use of PIC18F2550 microcontroller.

Choose Quantity

+ Add to Cart

Product Details

PIC18F2550 Simplified Features
CPU	8-bit
Total Number of Pins	28
Operating Voltage	+4.0 to +5.5 V (+5.5V being absolute maximum)
Number of programmable I/O pins	24
Communication Interface	USB Serial Interface (15,16 PINS) [Can be used for programming this controller] Master/Slave SPI Serial Interface(7,18,21,22PINS) [Can be used for programming this controller] Programmable Serial UART(17,18PINS) [Can be used for programming this controller] Two-wire Serial Interface(21,22PINS)[Can be used to connect peripheral devices like sensors and LCDs]
ADC Module	10channels, 10-bit resolution ADC
Timer Module	One8-bit counter, Three16-bit counter
Analog Comparators	2
PWM channels	2
External Oscillator	Up to 48MHz
Internal Oscillator	32KHz-8MHz Calibrated Internal Oscillator
Program memory Type	Flash
Program memory / Flash memory	32Kbytes[10000 write/erase cycles]
CPU Speed	12 MIPS
RAM memory	2KBytes
EEPROM memory	256Bytes
Watchdog Timer	Programmable Watchdog Timer with Separate On-chipOscillator
Power Save Modes	Available
Operating Temperature	-40°C to +85°C(+85 being absolute maximum, -40 being absolute minimum)
