Oscilloscope
BD 23.500
Out of stock
100% Brand new and high quality!

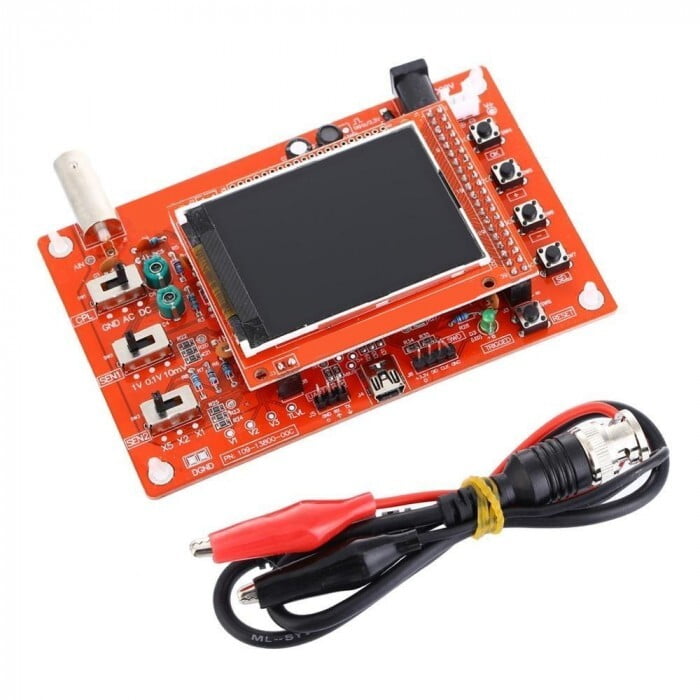

This kit uses for ARM Cortex-M3 processor (for STM32F103C8), and includes a 2.4-inch color TFT display screen, can be used as for ARM test development board.
Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
Adjustable vertical displacement, and with instructions.
With automatic, regular and one-shot modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Detailed assembly instructions are provided in combination with troubleshooting guide and schematc. Source codes are also available to allow user to add their own features.
This kits has all for SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required.
It is partially open-sourced. This opens the possibility for users to add different features or develop new applications on the hardware.
9V DC power supply required. Not included Charger.
For Waveform frozen (HOLD) function available.
Built-in 1KHz/3.3V test signal.
Specifications:
Color: Red
For Analog bandwidth: 0 - 200KHz
Sampling rate: 1Msps max
Sensitivity: 10mV/Div - 5V/Div
Sensitivity error: < 5%
Vertical resolution: 12-bit
Timebase: 10us/Div - 500s/Div
Record length: 1024 points
Product Details
Characteristics of indicators:
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling modes: DC / AC / GND
The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position, and with instructions
Observable previous trigger waveform (negative delay)
Can freeze at any time waveform display (HOLD function)
Comes 1Hz /3.3V square wave test signal source
Maximum real-time sampling rate: 1Msps
Accuracy: 12Bit
Sampling buffer depth: 1024 bytes
Analog bandwidth: 0 - 200KHz
Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
Adjustable vertical displacement, and with instructions
Input impedance: 1MΩ
Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
Coupling modes: DC / AC / GND
The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
With automatic, regular and one-shot mode, easy to capture the moment waveform
Available rising or falling edge trigger
Adjustable trigger level position, and with instructions
Observable previous trigger waveform (negative delay)
Can freeze at any time waveform display (HOLD function)
Comes 1Hz /3.3V square wave test signal source
Package included:
1 x DIY Digital Oscilloscope Kit
1 x DIY Digital Oscilloscope Kit
