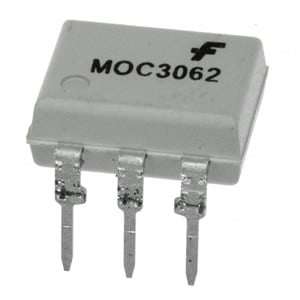

MOC3062 (PHOTOTRIAC DRIVER OPTOCOUPLER)
BD 1.200
The MOC3062-M is a 600V zero crossing TRIAC Driver Output Optocoupler consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115/240VAC lines, such as solid state relays, solenoids etc.
- Simplifies logic control of 115/240VAC power
- Zero voltage crossing
- 600V/µs guaranteed
Applications
Consumer Electronics, Motor Drive & Control, Industrial, Lighting
Choose Quantity
Product Details
FEATURES
• Simplifies logic control of 115/240 VAC power
• Zero voltage crossing
• dv/dt of 1000 V/µs guaranteed (MOC316X-M),
– 600 V/µs guaranteed (MOC306X-M)
• VDE recognized (File # 94766)
– ordering option V (e.g., MOC3063V-M)
• Underwriters Laboratories (UL) recognized (File #E90700, volume 2)
APPLICATIONS
• Solenoid/valve controls
• Static power switches
• Temperature controls
• AC motor starters
• Lighting controls
• AC motor drives
• E.M. contactors
• Solid state relays
