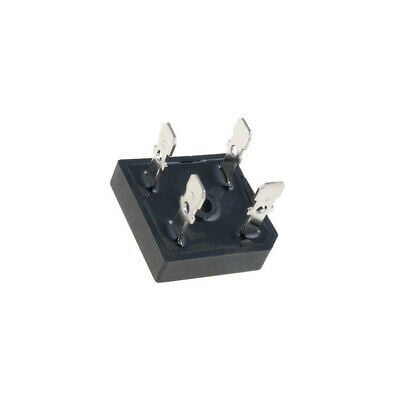

DIOTEC SEMICONDUCTOR KBPC1012FP, Single phase, 1.2kV, 10A
Non-returnable
BD 4.500
Single phase rectifier bridge Urmax 1200V Inom 10A
Manufacturer DIOTEC SEMICONDUCTOR
Type of semiconductor component single phase rectifier bridge
Off state voltage max. 1200V
Rated current 10A
Variant square
Leads 6.3x0.8mm connectors
Additional information
Gross weight 0.02 kg
Manufacturer DIOTEC SEMICONDUCTOR
Type of semiconductor component single phase rectifier bridge
Off state voltage max. 1200V
Rated current 10A
Variant square
Leads 6.3x0.8mm connectors
Additional information
Gross weight 0.02 kg
Choose Quantity
Product Details
FEATURES
· Metal case for Maximum Heat Dissipation
· Diffused Junction
· High current capability
· Surge overload ratings - 300 Amperes
· Low forward voltage drop
· High Reliability
MECHANICAL DATA
· Case: Metal case, electrically isolated
· Epoxy: UL 94V-0 rate flame retardant
· Terminals: Plated .25"(6.35mm) Faston lugs, Solderable per MIL-STD-202E, Method 208 guaranteed
· Polarity: As marked
· Mounting position: Any
Weight: 25 grams approx
