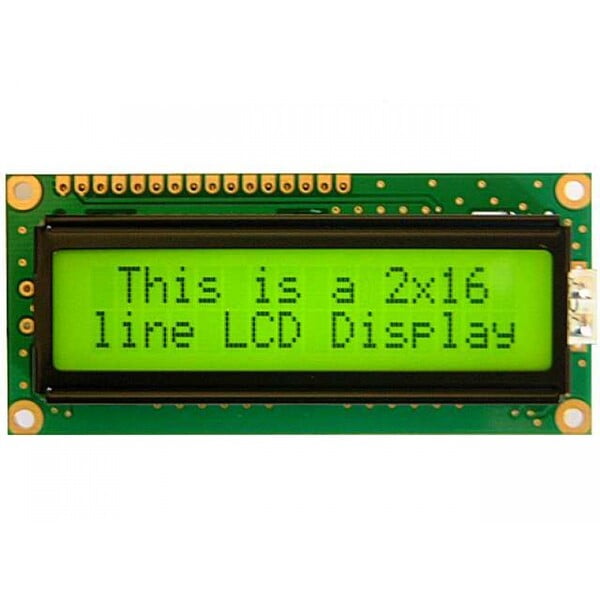

LCD 16*2
BD 5.500
This is a basic 16 character by 2 line display with black text on a yellow background. Utilizes the extremely common HD44780 parallel interface chipset.
Specification
Compatible with Arduino Liquid Crystal Library
LCD Display Mode: STN, Positive, Transflective
Viewing Angle: 6:00
Driving Method: 1/16 duty, 1/5 bias
Back Light: Yellow-Green LED backlight
Text Color: Black
Outline Dimension: 80 x 36 x 15.8 MAX
Character Res: 16 x 2
Driver Voltage: 5 VDC
Choose Quantity
Product Details
Technical details
| Dimensions | 80mm x50mm x12mm |
| Weight | G.W 38g |
| Battery | Exclude |
Part List
| LCD 16*2 Characters - Green Yellow back light | 1 |
ECCN/HTS
| HSCODE | 8531200000 |
| UPC | 841454106456 |
