Arduino Nano, Copy
Non-returnable
BD 9.500

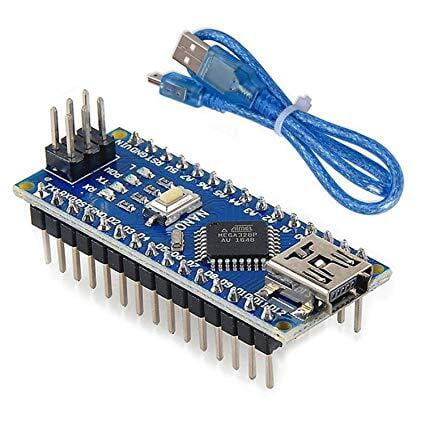

MicrocontrollerThe Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
- You could download the driver of Nano V3.0 at: http://bit.ly/2pMF4in
- The Nano is using the chips ATmega328P and CH340, not FT232 as official Arduino, so pls. use the driver from above link.
- It is a smallest, complete, and breadboard friendly board. It has everything that Arduino/Genuino UNO has (electrically) with more analog input pins and onboard +5V AREF jumper.
- Nano’s got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It’s got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other).
- The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source
Choose Quantity
Product Details
Technical specs
Microcontroller: ATmega328
Architecture: AVR
Operating Voltage: 5 V\
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM: 2 KB
Clock Speed: 16 MHz
Analog I/O Pins: 8
EEPROM: 1 KB
DC Current per I/O Pins: 40 mA (I/O Pins)
Input Voltage: 7-12 V
Digital I/O Pins: 22
PWM Output: 6
Power Consumption: 19 mA
PCB Size: 18 x 45 mm
Weight: 7 g
Microcontroller: ATmega328
Architecture: AVR
Operating Voltage: 5 V\
Flash Memory: 32 KB of which 2 KB used by bootloader
SRAM: 2 KB
Clock Speed: 16 MHz
Analog I/O Pins: 8
EEPROM: 1 KB
DC Current per I/O Pins: 40 mA (I/O Pins)
Input Voltage: 7-12 V
Digital I/O Pins: 22
PWM Output: 6
Power Consumption: 19 mA
PCB Size: 18 x 45 mm
Weight: 7 g
