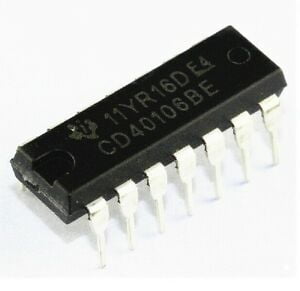

IC CD40106, 40106, Hex Schmitt Trigger Inverter

Name: IC CD40106, 40106, Hex Schmitt Trigger Inverter
SKU: IC/CD/40/106
Price: 1.4 BHD
Availability: InStock

Non-returnable

BD 1.400

The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltages (VN) is defined as hysteresis voltage (VH).

The CD40106B device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for –55°C to +125°C ambient temperature operation.

CD40106

Pin Number	Pin Name	Description
1,3,5,11,13,15	Schmitt Input Pins	Input pins of the Schmitt trigger
2,4,6,10,12,14	Schmitt Inverted Output Pins	Output pins of the Schmitt trigger
7	Ground	Connected to the ground of the system
14	Vcc (+5V)	Resets all outputs as low. Must be held high for normal operation

Choose Quantity

+ Add to Cart

Product Details

Features of CD40106 Schmitt Trigger Inverter

Schmitt Trigger – Hex Inverter
Operating Voltage: 5V
Low-Level Hysteresis voltage: 0.3V
High-Level Hysteresis voltage: 3.5V
Output current High: -1mA
Output current Low: 1mA
Quiescent Current: 40 nA
Propagation Delay Time: 280 ns
Operating Temperature Range: -55 C to + 125 C
Available in 14-pin PDIP, GDIP, PDSO packages

Where to use CD40106 IC

The CD40106 is a hex inverter Schmitt trigger, meaning it has 6 inverted Schmitt triggers inside it. A Schmitt trigger is used to avoid the problem of hysteresis. It can also be used to smoothen a noisy single into a sharp one. Schmitt trigger gate can convert sinusoidal or triangular wave to square wave. It can also be used as a logic inverter if needed. A Schmitt trigger is also useful for debouncing a push button or other noisy input devices.

So if you are looking for an IC which can help you to get of switching noise or to create sharp square wave signals based on an input signal then this IC could be the right choice for you.
