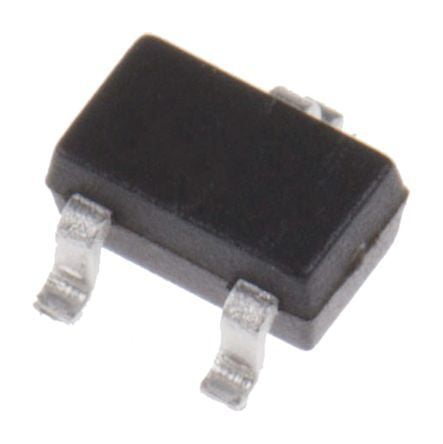

DTA114 Transistor Digital, BJT, PNP, 50V SMD
BD 2.500
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors, a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
Simplifies Circuit Design
Reduces Board Space
Reduces Component Count
S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements, PPAP capable
These Devices are PbFree, Halogen Free/BFR Free
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Number of Elements per Chip | 1 |
| Maximum Continuous Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Package Type | SC-75 |
| Pin Count | 3 |
| Minimum DC Current Gain | 80 |
| Transistor Configuration | Single |
| Maximum Power Dissipation | 300 mW |
| Maximum Collector Emitter Saturation Voltage | 0.25 V dc |
| Configuration | Single |
| Height | 0.8mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.65mm |
| Dimensions | 1.65 x 0.9 x 0.8mm |
| Width | 0.9mm |
| Automotive Standard | AEC-Q101 |
