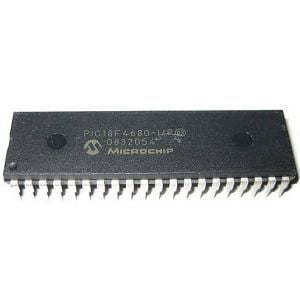

PIC18F4680 (Microcontroller 8bit 64KB)
BD 8.900
This family of devices offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price. In addition to these features, the PIC18F4680 family introduces design enhancements that make these microcontrollers a logical choice for many high-performance, power-sensitive applications.
Key Features
- High-Temperature Features:
- Ambient Temperature Range of -40°C to 150°C ECAN Module Features:
- Message Bit Rates, up to 1 Mbps
- Conforms to CAN 2.0B ACTIVE Specification
- Fully Backward Compatible with PIC18XXX8 CAN modules
- Three Modes of Operation: - Legacy, Enhanced Legacy, FIFO
- Three Dedicated Transmit Buffers with Prioritization
- Two Dedicated Receive Buffers
- Six Programmable Receive/Transmit Buffers
- Three Full 29-Bit Acceptance Masks
- 16 Full 29-Bit Acceptance Filters w/ Dynamic Association
- DeviceNet™ Data Byte Filter Support
- Automatic Remote Frame Handling
- Advanced Error Management Features Special Microcontroller Features:
- C Compiler Optimized Architecture with Optional Extended Instruction Set
- Priority Levels for Interrupts
- 8 x 8 Single-Cycle Hardware Multiplier
- Extended Watchdog Timer (WDT): - Programmable period from 41 ms to 131s
- Single-Supply 5V In-Circuit Serial Programming™ (ICSP™) via Two Pins
- In-Circuit Debug (ICD) via Two Pins
Choose Quantity
Product Details
Technical AttributesFind Similar Parts
| Description | Value | |
|---|---|---|
| Device Core | PIC | |
| Instruction Set Architecture | RISC | |
| Interface Type | I2C/SPI/USART | |
| Lead Finish | Matte Tin | |
| Max Processing Temp | 260 | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum Power Dissipation | 1000 mW | |
| Maximum Speed | 40 MHz | |
| Minimum Operating Supply Voltage | 4.2 V | |
| Mounting | Through Hole | |
| Number of Programmable I/Os | 44 | |
| Number of Timers | 4 | |
| On-Chip ADC | 11-chx10-bit | |
| Operating Supply Voltage | 5 V | |
| Operating Temperature | -25 to 85 °C | |
| Pin Count | 40 | |
| Product Dimensions | 52.26 x 13.84 x 3.81 mm | |
| Program Memory Size | 64 KB | |
| Program Memory Type | Flash | |
| RAM Size | 3.25 KB | |
| Screening Level | Industrial | |
| Supplier Package | PDIP | |
| Watchdog | 1 |
