LAN Wiring Tester, RJ45 and RJ11 and BNC
BD 18.500
Out of stock

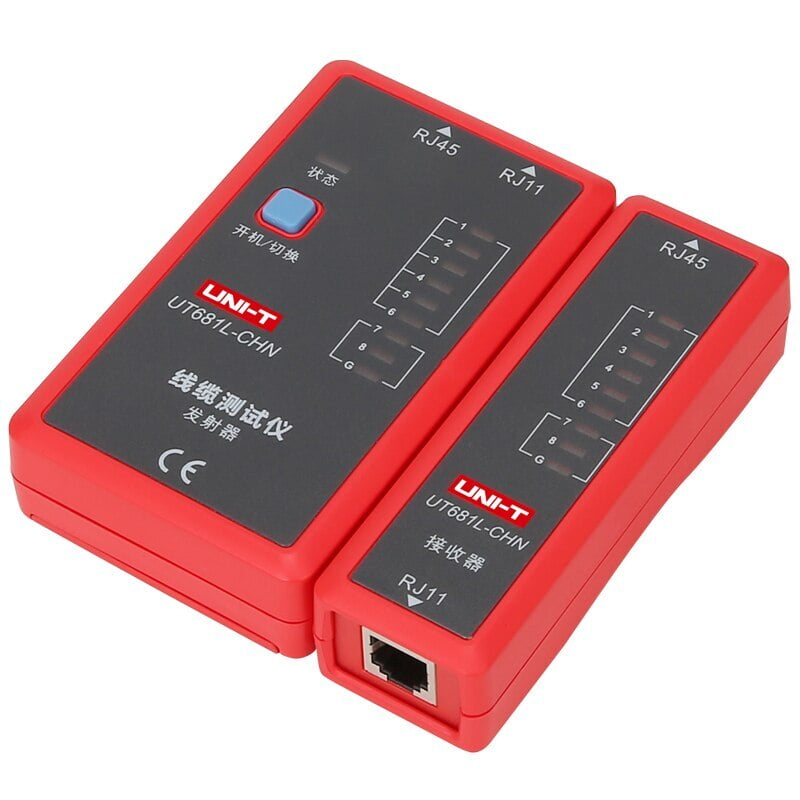

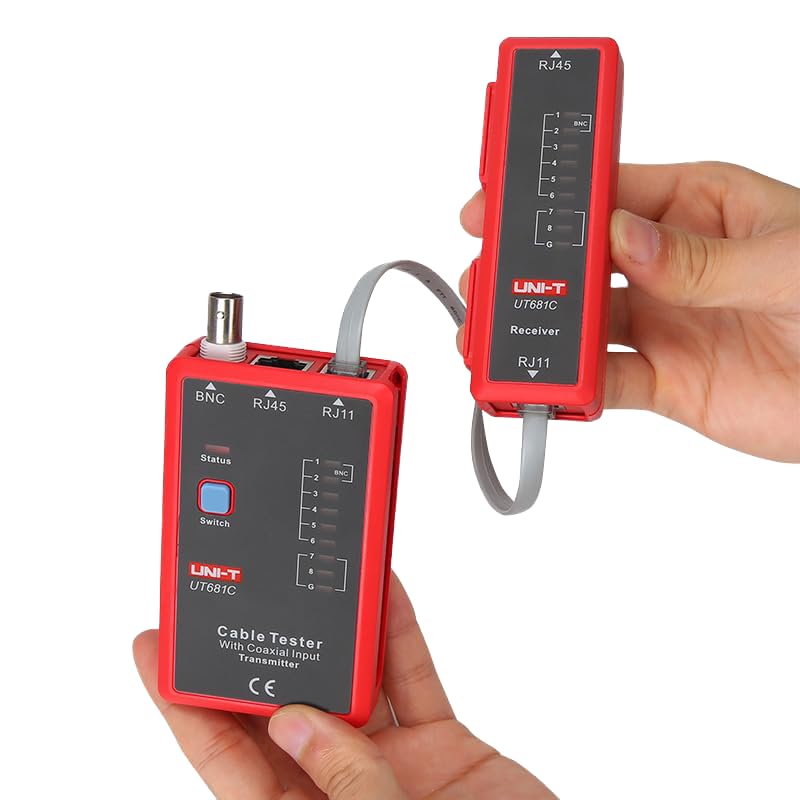

UT681 series handheld cable testers can be used to fast check if Ethernet/telephone/BNC/HDMI cables are conducting, short-circuit, crossed or open-circuit. They are ideal tools for technicians to install, maintain and inspect week current system circuit.
Features:
1. LED status display
2. Auto check of open/short/crossovercircuit
3. Single key operation
4. Manual/auto power off (after10-minute inactivity)
5. Low battery indication
6. Power supplied by 9V battery
Product Details
| Specifications | Range | UT681L | Description |
| Test function | To test for: RJ45/RJ11 | √ | |
| Fast test mode | √ | LED1~LED8, LED_G | |
| Slow test mode | √ | LED1~LED8, LED_G | |
| To test for the case of short circuit, crossover, open circuit, etc. | √ | ||
| Ethernet cable: shielded/ unshielded test | √ | ||
| Manual shutdown function | √ | ||
| Auto shutdown function | √ | No operation within 10 minutes, the device will shut down automatically | |
| Single key operation | √ | ||
| Power supply: 9V battery | √ | ||
| Low battery detection | √ | Less than 7.2V | |
| Application environment | Operating temperature: 0~40℃ | √ | |
| Storage temperature: -10~50℃ | √ | ||
| Operating humidity: 20~80%RH | √ | ||
| Storage humidity: 10~90%RH | √ | ||
| Altitude: ≤2000 meters | √ | ||
| Safety standard | CE EN61326-1: 2013; EN61326-2-2: 2013 | √ | |
| General Characterisitics | |||
| Product color | Red and grey | ||
| Product net weight | Transmitter: 87g; receiver: 51g | ||
| Product size | Transmitter: 102mm x 62mm x 28mm; receiver: 102mm x 37mm x 28mm | ||
| Standard accessories | 9V battery | ||
| Standard individual packing | Gift box, English manual |
