Capacitance Meter
Non-returnable
BD 32.500

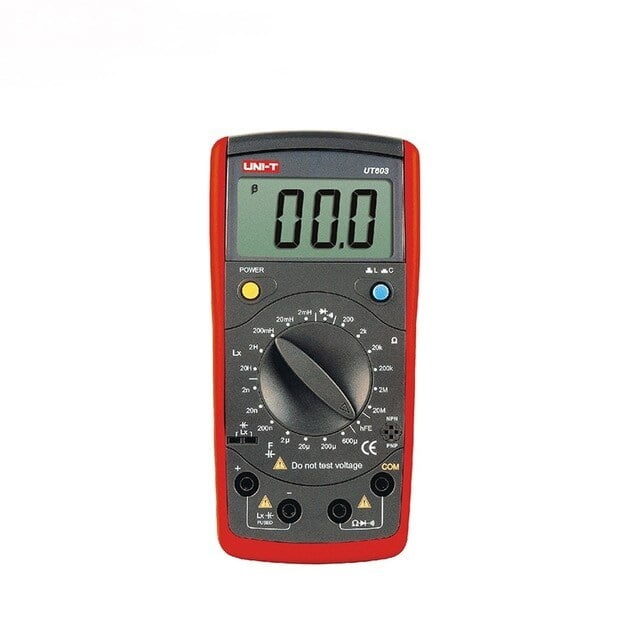

UNI-T Digital Multimeter LCR Meter UT603 Inductance Ohmmeter Capacitance Resistance Capacitors Transistor Diode Tester.
SPECIFICATION:
Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm
- best accuracy: +/- (0.8%+1)
Capacitance: 2nF / 20nF / 200nF / 2µF / 20µF / 200µF / 600µF
- best accuracy: +/- (1%+5)
Inductance: 2mH / 20mH / 200mH / 2H / 20H
- best accuracy: +/- (2%+8)
SPECIAL FUNCTIONS:
Diode
Continuity buzzer
Transistor
Low battery display
Max. display 1999 (61 x 32mm)
Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm
- best accuracy: +/- (0.8%+1)
Capacitance: 2nF / 20nF / 200nF / 2µF / 20µF / 200µF / 600µF
- best accuracy: +/- (1%+5)
Inductance: 2mH / 20mH / 200mH / 2H / 20H
- best accuracy: +/- (2%+8)
SPECIAL FUNCTIONS:
Diode
Continuity buzzer
Transistor
Low battery display
Max. display 1999 (61 x 32mm)
Choose Quantity
Product Details
GENERAL CHARACTERISTICS:
Power: 9V bat. (6F22)
Product size: 172 x 83 x 38mm
Product weight: 312g
Manufacturer: UNI-TREND
Power: 9V bat. (6F22)
Product size: 172 x 83 x 38mm
Product weight: 312g
Manufacturer: UNI-TREND
