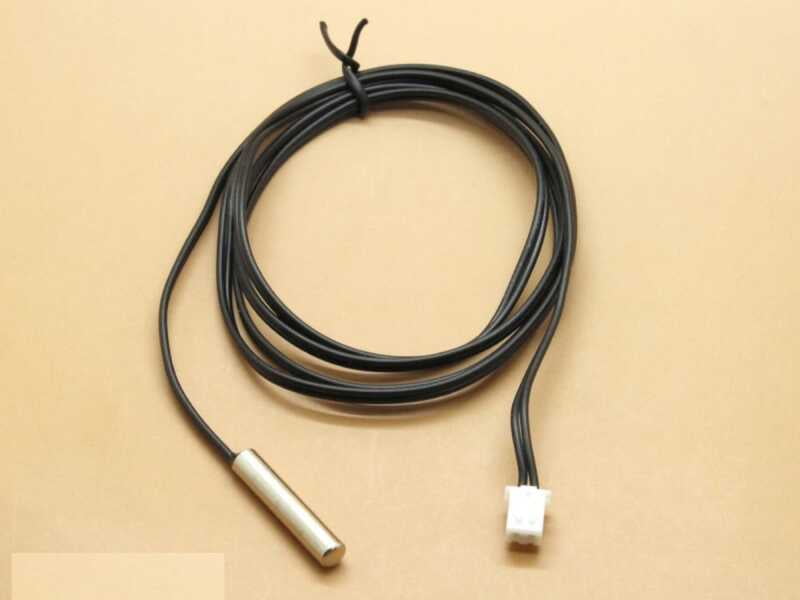

Temperature sensor 10K, NTC, Waterproof
Non-returnable
BD 2.500
Thermistor cable with waterproof probe for temperature measurement. Great advantage is also the 1 meter long cable
Features
1. Measurement range : -20 degrees Celsius ~ 105 degrees Celsius
2. Wire length : 1 meter
3. Probe size : 5x30 mm
4. Type : NTC 10K ± 1% 3950
5. Typical continuous dissipation : 5 mW / Celsius
6. Probe Insulation Resistance : > 100 MΩ
7. Peak voltage maintenance time : 2 seconds, AC1800V 1mA 2 seconds
Choose Quantity
Product Details
Specifications:
- Stainless steel case, waterproof
- Measurement range: -20 to 105 °C
- Cable length: 1 m
- Size of probe: 5 x 25 mm
- Output： 2 wires
- Type: NTC 10k±1% 3950
- B-constant : 3950K -/+ 1%
- A typical dispersion 5mW/ °C
- The insulation of the probe: >100 MOhm
