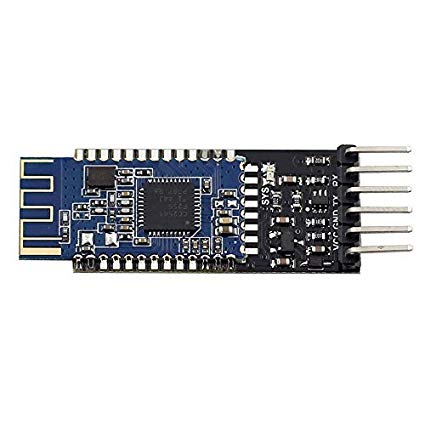

Bluetooth Module HM-10 for Arduino 4.0
This board is an HC-10 Bluetooth 4.0 master/slave module. It can use AT commands to set baud rate, pairing password & module name. It’s capable of connecting to computers, other Bluetooth modules, mobile phones etc.
The module is based on the Texas Instruments CC2541 Bluetooth Low Energy (BLE) System on Chip (SoC). It’s perfect for adding Bluetooth 4.0 connectivity to your next DIY project.
Wireless technology is undeniably taking over as a primary method of communication between computers, smartphones, and tablets. Wires are a thing of the past, where Bluetooth and Wifi are the burgeoning present and future internet of things. Bluetooth in particular is omnipresent due to its low-energy innovations and universal compatibility. For makers, Bluetooth low energy (BLE) is a crucial component of the network of devices that communicate to create the connected world in which we live.
- Master/slave unit in one module
- Communicate with computers, mobile phones, etc.
- Use AT commands to set various settings
- Based on TI CC2541 BLE SoC
Input Voltage
3.6V - 6.0V
Default Baud Rate
9600
Default Pairing Password
000000
Operating Frequency
2.4GHz ISM band
Modulation Method
GFSK (Gaussian Frequency Shift Keying)
RF Power
-23dbm, -6dbm, 0dbm, 6dbm (can be modified using AT Command AT+POWE)
Speed (Asynchronous)
6 kbps
Speed (Synchronous)
6 kbps
Security
Authentication and encryption
Operating Temperature
-5°C ~ +65°C
Weight
4g
