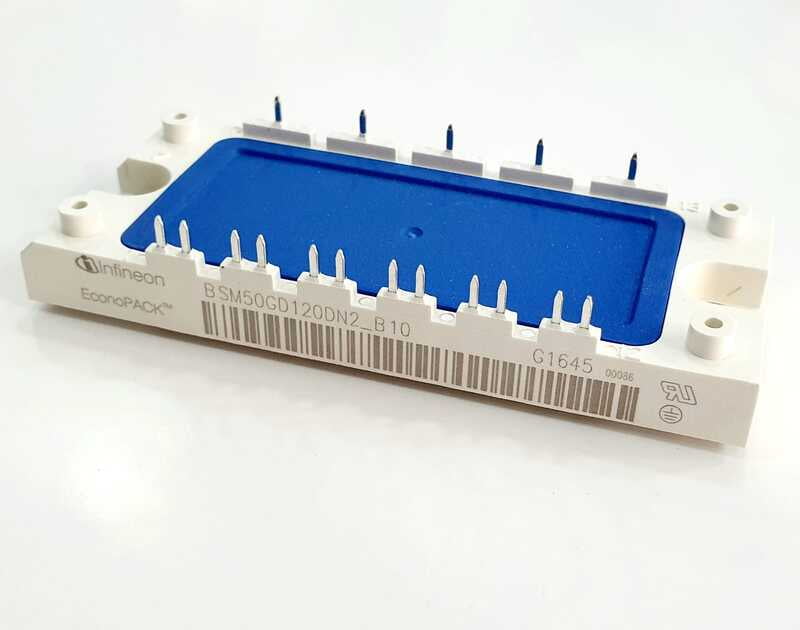

IGBT Module BSM50GD120DN2B10
The Infineon range of IGBT Modules offer low switching loss for switching up to 60 Khz frequencies.
The IGBTs span over a range of power modules like the ECONOPACK packages with collector emitter voltage at 1200V, PrimePACK IGBT half-bridge chopper modules with NTC up to 1600/1700V. The PrimePACK IGBT’s can be found in Industrial, commercial, construction and agricultural vehicles. The N-Channel TRENCHSTOP TM and Fieldstop IGBT Modules are suitable for hard switching and soft switching applications such as Inverters, UPS and Industrial drives.
Package styles include: 62mm Modules, EasyPACK, EconoPACKTM2/EconoPACKTM3/EconoPACKTM4
IGBT Discretes & Modules, Infineon
The Insulated Gate Bipolar Transistor or IGBT is a three-terminal power semiconductor device, noted for high efficiency and fast switching. The IGBT combines the simple gate-drive characteristics of the MOSFETs with the high-current and low–saturation-voltage capability of bipolar transistors by combining an isolated gate FET for the control input, and a bipolar power transistor as a switch, in a single device.
| Attribute | Value |
|---|---|
| Configuration | 3 Phase Bridge |
| Maximum Continuous Collector Current | 50 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Mounting Type | Through Hole |
| Package Type | EconoPACK 2 |
| Pin Count | 17 |
| Maximum Power Dissipation | 350 W |
| Dimensions | 107.5 x 45 x 17mm |
| Height | 17mm |
| Length | 107.5mm |
| Width | 45mm |
