Digital Multimeter Model# 4
BD 24.500
Out of stock

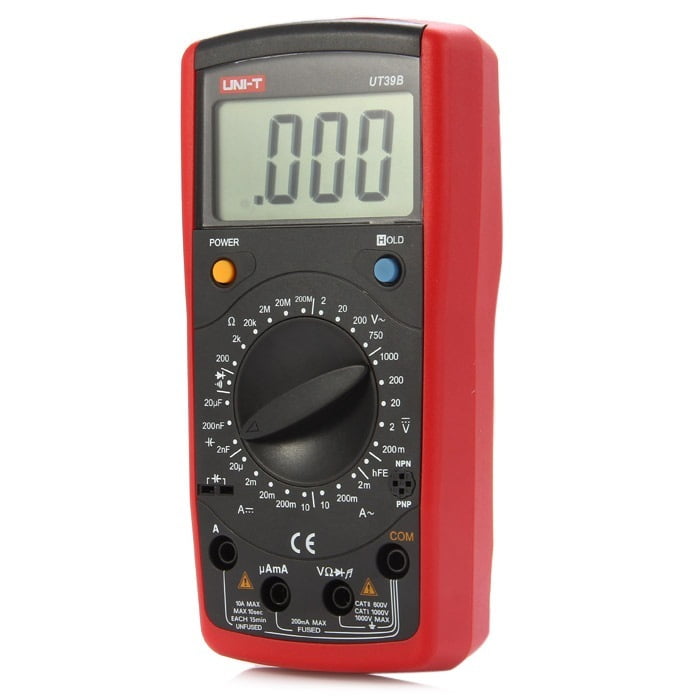

Universal multimeter allows you to measure direct and alternating voltage, direct and alternating current, resistance, capacity. Equipped with diode tester, circuit continuity test, automatic switch and transistor test. Uni-T UT39B
Features
- Parameter measurement
- DC voltage 200mV/2V/20V/200V/1000V ±(0.5%+1)
- AC voltage 2V/20V/200V/750V ±(0.8%+3)
- DC current 2mA/200mA/10A ±(0.8%+1)
- AC current 2mA/200mA/10A ±(1%+3)
- Resistance 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+1)
- Capacitance 2nF/200nF/20uF ±(4%+3)
- Functionalities
- Display with a maximum indication of 2000
- Manual range
- Diode test
- Auto power off
- Continuity test
- Low battery indicator
- Transistor test
- Data Hold
- Input impedance for DCV ≥10MΩ
- General parameters
- Power supply: 6F22 9 V battery
- Color: Red-gray
- Dimensions: 172 × 83 × 38 mm
- Weight: 310 g
Product Details
Kit contains
- Universal meter Uni-T UT39B
- Test leads
- Batteries
- Case
- Instruction
