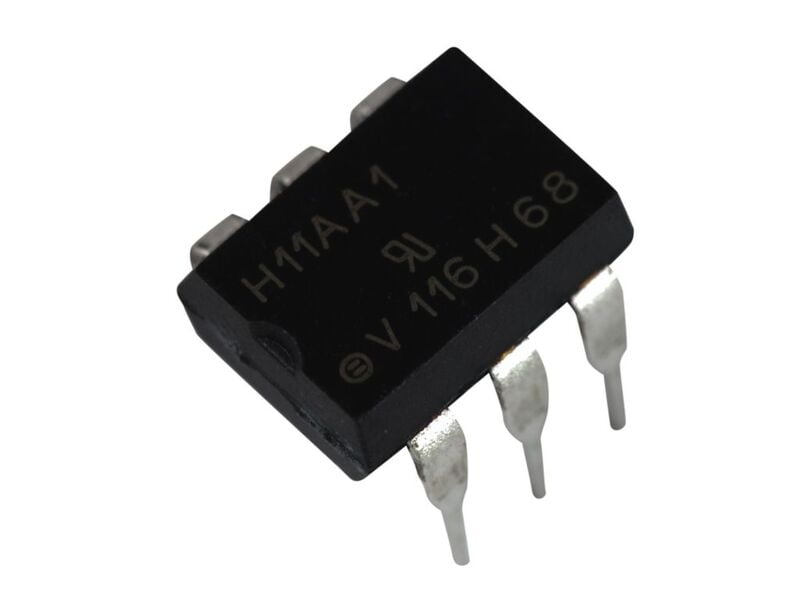

H11AA1 AC Input Phototransistor OptoCoupler
BD 1.500
The H11AA1 is a bi-directional input optically coupled isolator consisting of two inverse parallel gallium arsenide infrared LEDs coupled to a silicon NPN phototransistor in a 6 pin DIP package. The H11AA1 has a minimum CTR of 20 %, a CTR symmetry of 1:3 and is designed for applications requiring detection or monitoring of AC signals.
FEATURES
• AC or polarity insensitive input
• Built-in reverse polarity input protection
• I/O compatible with integrated circuits
• Industry standard DIP package
• Isolation test voltage: 5300 VRMS
• Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
Choose Quantity
Product Details
APPLICATIONS
• Telephone line detection
• AC line motor
• PLC
• Instrumentation
