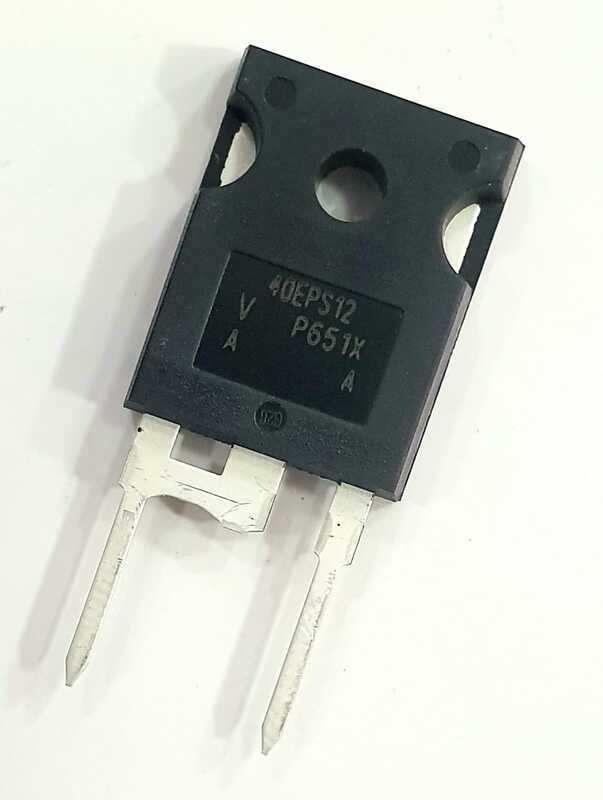

Diode 40EPS12, 1.2Kv, 40A
Non-returnable
BD 4.000
The 40EPS rectifier series has been optimized for
very low forward voltage drop with moderate
leakage. The glass passivation technology used
operates reliably up to 150°C junction temperature.
Typical applications are in input rectification, and
these products are designed to be used with
International Rectifier switches and output
rectifiers which are available in identical package
outlines.
FEATURES
• Very low forward voltage drop
• 150 °C max. operating junction temperature
• Glass passivated pellet chip junction
• Designed and qualified according to JEDEC®-JESD 47
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Choose Quantity
Product Details
APPLICATIONS
• Input rectification
• Vishay Semiconductors switches and output rectifiers which are available in identical package outlines
Specifications
| Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-247AC |
| Maximum Continuous Forward Current | 40A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Single |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.1V |
| Number of Elements per Chip | 1 |
| Peak Non-Repetitive Forward Surge Current | 475A |
