Fast Connector, 5 pins, 400v, 32A
BD 0.800

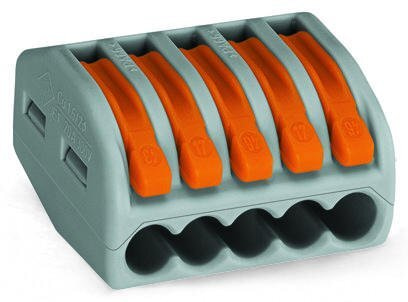

The 222-415 from Wago is a 5 conductor terminal block with cage clamp connection. This connector allows for solid, stranded and fine stranded cables to be connected together without the need for any tools. This terminal block is suitable for wire size ranging from 28AWG to 12AWG.
- Compact connecting terminal for up to 5 stripped flexible conductors
- Conductor size from 0.08 to 4 mm²
- Operating lever avoids the need for tools for operation
- Voltage Rating: 400V
- W: 26.6mm x H: 14.5mm x D: 20.5mm
- Ambient Temperature: 60°C
- Grey
- Side entry wiring type
Applications
Industrial, Communications & Networking, Lighting, Security, Signalling, HVAC
Choose Quantity
Product Details
| Brand | WAGO |
| Model Number | 222-415 |
| Colour | Orange, Grey |
| Item Weight | 9.07 g |
| Product Dimensions | 3.6 x 3 x 1.5 cm |
| Material | Copper |
