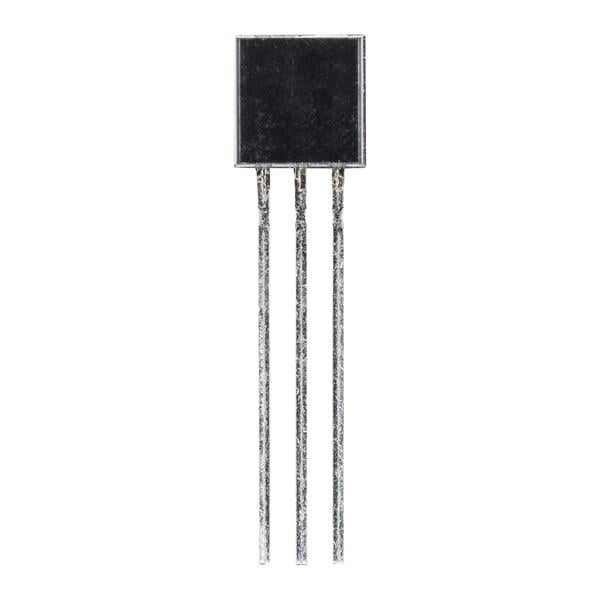

MC79L15ACLP (Negative Linear Voltage Regulator -15V And 0.1A)
BD 1.000
This series of fixed negative-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used to control series pass elements to make high-current voltage-regulator circuits. One of these regulators can deliver up to 100 mA of output current. The internal current-limiting and thermal-shutdown features essentially make the regulators immune to overload. When used as a replacement for a Zener-diode and resistor combination, these devices can provide an effective improvement in output impedance of two orders of magnitude, with lower bias current
Features:
3-Terminal Regulators
Output Current Up To 100 mA
No External Components Required
Internal Thermal-Overload Protection
Internal Short-Circuit Current Limiting
Direct Replacement for Industry-Standard MC79L00 Series
Available in 5% or 10% Selections
Applications
Power Management, Industrial
Choose Quantity
Product Details
| Product Attribute | Attribute Value | |
|---|---|---|
| Texas Instruments | ||
| Linear Voltage Regulators | ||
| RoHS: | Details | |
| Through Hole | ||
| TO-92-3 | ||
| 1 Output | ||
| Negative | ||
| - 15 V | ||
| 100 mA | ||
| Fixed | ||
| - 35 V | ||
| - 17.5 V | ||
| 0 C | ||
| + 125 C | ||
| 150 mV | ||
| 300 mV | ||
| MC79L15A | ||
| Bulk | ||
| Height: | 3.68 mm | |
| Length: | 4.83 mm | |
| Operating Temperature Range: | 0 C to + 125 C | |
| Width: | 3.43 mm | |
| Brand: | Texas Instruments | |
| PSRR / Ripple Rejection - Typ: | 39 dB | |
| Product Type: | Linear Voltage Regulators | |
| Factory Pack Quantity: | 1000 | |
| Subcategory: | PMIC - Power Management ICs | |
| Unit Weight: | 213,200 mg |
