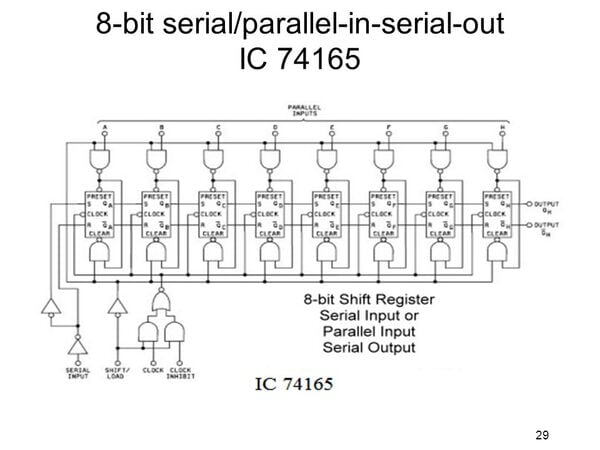

IC 74165 (8-Bit Parallel In/Serial Out Shift Register)
BD 1.500
The 74HC165; 74HCT165 are 8-bit serial or parallel-in/serial-out shift registers. The device features a serial data input (DS), eight parallel data inputs (D0 to D7) and two complementary serial outputs (Q7 and Q7). When the parallel load input (PL) is LOW the data from D0 to D7 is loaded into the shift register asynchronously. When PL is HIGH data enters the register serially at DS. When the clock enable input (CE) is LOW data is shifted on the LOW-to-HIGH transitions of the CP input. A HIGH on CE will disable the CP input. Inputs are overvoltage tolerant to 15 V. This enables the device to be used in HIGH-to-LOW level shifting applications.
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC | − 0.5 to + 7.0V DC |
| Input Voltage (VIN) | −1.5V to VDD + 1.5V |
| Output Voltage (VOUT) | − 0.5 to VCC + 0.5V |
| Clamp Diode Current (IIK, IOK) | ± 20 mA |
| DC Output Current, per pin (IOUT) | ± 25 mA |
| DC VCC or GND Current, per pin (ICC) | ± 50 mA |
| Storage Temperature Range (TSTG) | − 65°C to + 150°C |
| Power Dissipation (PD) (Note 4) | 600 mW |
| S.O. Package only | 500 mW |
| Lead Temperature (TL) | 260°C |
Choose Quantity
Product Details
Features and benefits
- Asynchronous 8-bit parallel load
- Synchronous serial input
- Complies with JEDEC standard no. 7A
- Input levels:
- For 74HC165: CMOS level
- For 74HCT165: TTL level
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
