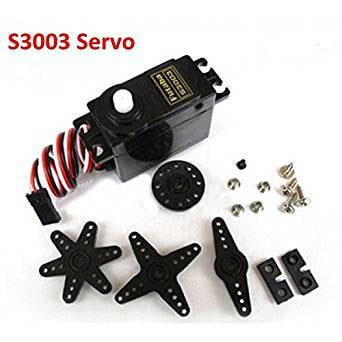

Servo Motor S3003
BD 15.500
S3003 Servo Motor is a decent servo for every hobbyist and electronics student. The powerful motor is PWM controlled for easy interfacing.
S3003 standard NIB servo for RC car plane. High torque analog servo. Stable and shock proof. Compliant with most standard receiver connector. Great for truck, boat, racing car, helicopter and airplane.
Servo Motor Features
| Model: | Futaba S3003 |
| Dead Band: | 0.100 ms |
| Control System: | +Pulse Width Control |
| Working Frequence: | 20ms period / 50hz (Analog Control) |
| (RX) Required Pulse: | 3.0 ~ 5 Volt Peak to Peak Square Wave |
| Operating Voltage: | 4.8 ~ 6 V DC Volts |
| Operating Temperature Range: | -0 to + 55 Degree C |
| Operating Speed (4.8v): | 0.200 sec/60° degrees at no load |
| Operating Speed (6v) | 0.160 sec/60° degrees at no load |
| Stall Torque (4.8v): | 9.4kg/cm |
| Stall Torque (6v): | 11kg/cm |
| Motor Type: | Brushed Motor |
| Potentiometer Drive: | Direct Drive |
| Bearing Type: | No Bearing |
| Gear Type: | Plastic Gears |
| Case Material: | Plastic |
| Programmable: | NO |
| Connector Wire Length: | 32.0cm (12.6 inch) |
| Dimensions: | 40.7×19.7×42.9mm |
| Weight: | 37 grams (1.3 oz) |
Choose Quantity
Product Details
Specifications:
- Power Requirements: 4 to 6 VDC*
- Communication: Pulse-width modulation
- Operating temp range: +14 to +144 °F (-10 to +50 °C)
- Torque: 38 oz-in @ 6 V
