IC Base 16 pin
Non-returnable
BD 0.300

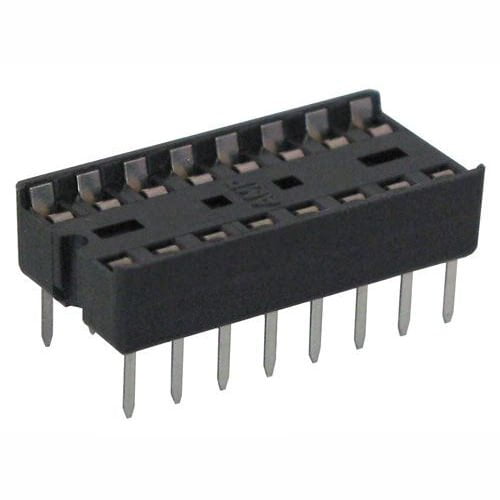

An IC (Integrated Circuit) socket allows you to insert and remove chips easily from an assembled kit or project. This item contains 16 pin 0.6″ wide version. Best used with chips that have 16 pins (2×8) and have 0.6″ pin spacing. These are often used for soldering into a Perma Proto or PCB so that you can replace and swap chips easily. What’s nice about IC sockets is that they are the same pin spacing and size so you don’t have to redesign the board
Choose Quantity
Product Details
Features
- Standard Type
- Dual Wipe Contacts
- Current Rating to 1A
- Easy for IC Removal and Insertion
- RoHS Compliant
- Tin Plated Contacts and Connectors
- Current Rating 1A
- Dielectric Withstand Voltage: 300Vac
- Insulation Resistance: > 1000Mohm
- Contact Resistance: < 5 mohm
- Body Height: 4.5mm (.188″)
- Pin Row Spacing: .60″
