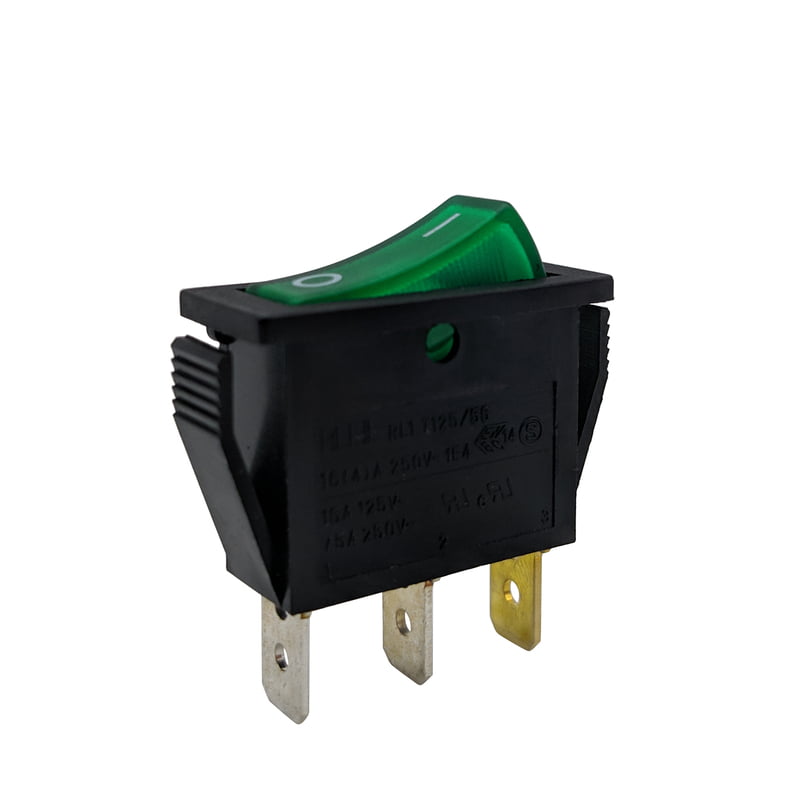

ROCKER SWITCH GREEN ON/OFF SPST (WITH LAMP) 15A 250VAC
BD 1.200
This is a very practical switch, which can be used in water dispenser, treadmill, computer speaker, battery car, toy car, cooking stove and other equipment
Product Size
- Total Size(Each) : 30 x 14 x 39 mm (L*W*T)
- Mount Size : 26 x 10 x 30 mm (L*W*Depth)
Choose Quantity
Product Details
Product Specification
- Rated voltage: 125V/250V
- Rated current: 20A/15A
- Temperature resistance: below 85 C
Installation of rocker switch with lighting. ON / OFF function for snap-in installation
- Installation dimensions 10.6x30.3mm
- with 6.3mm tab terminals
- Dimensions LxWxH: 32 x 14 x 36mm
- max switching capacity at 250V AC max 15Ampere, at 125V AC max 20Ampere
- ON OFF
- Control lamp in rocker 230V ~
