IC CD4011

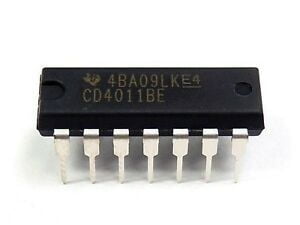

IC CD4011 (Quad 2-Input CMOS NAND Gate)

BD 1.400
CD4011 is the most commonly used complementary metal oxide Semiconductor (CMOS) chip.The IC comprises of 14 pins with four independent NAND gates (N1,N2,N3,N3) in a single chip. Each NAND gate has two inputs and one output.The working of cd4011 IC  requires 5V to 16V to operate. Each output can deliver output current of about 10mA at 12V but this range can reduce as the power supply voltage reduces.The positive terminal of the battery was connected to the pin 14 and negative terminal of the battery was connected to the pin7 .The output pins of the IC are 3,4,10,11 and input pins are 1,2,5,6,9,8,12,13.Now let us see how this Integrated circuit works and how can we use it for our operations.
These quad gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N-and P-channel enhancement mode transistors. They have equal source and sink current capabilities and conform to standard B series output drive. The devices also have buffered outputs which improve transfer characteristics by providing very high gain. All inputs are protected against static discharge with diodes to VDD and VSS.
