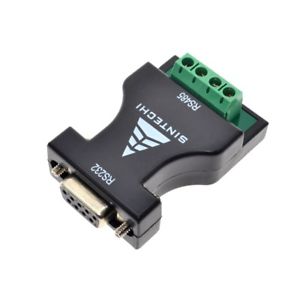

RS232 to RS485 Serial Adapter
BD 6.500
- It is widely used in industrial automation,door safe,all-in one-card,car parking,ATM,bus charge,eatery sell
- Compatible with EIA/TIA RS232 & RS485 standard
- Interface RS232 side:DB9 female connector
- Interface RS485 side:DB9 male connector with optional terminal board telecommunication agreement
- Work environment:-10degree to 86 degree,relative humidity:5% to 95%
- Working mode:asynchoronous,half-duplex,differential transmission
- Transmission media:common wire,double wire or UTP or Shielding line
- Transmission rate:300-115200bps,which is capable of applying between host computers host computer
- Transmission distance:RS485 max.1200m,RS232 side max.5m
- Dimension:5.5cm x 3.5cm x 1.8cm(LxWxH)
Choose Quantity
Product Details
Technical Specifications:
Connector Type(s) 1 – DB-9 (9 pin, D-Sub) Female
1 – Terminal Block (5 Wire)
ENVIRONMENTAL
Humidity 0~95% RH
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
PHYSICAL CHARACTERISTICS
Color Black
