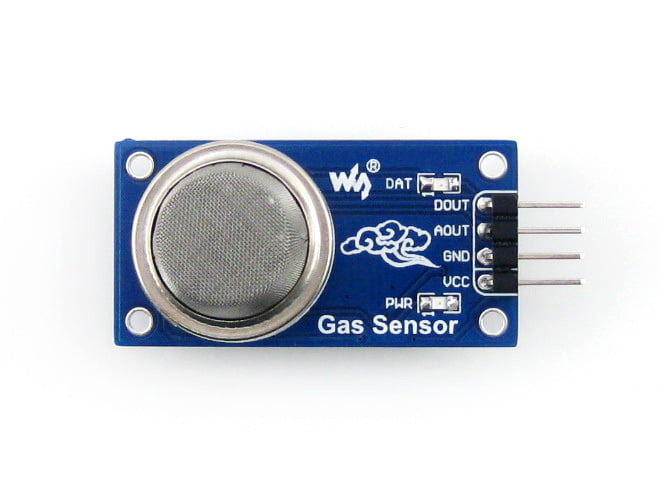

MQ7 Gas Sensor Waveshare
Non-returnable
BD 13.500
The sensor measures the concentration of flammable gases in the air, the result can be obtained measuring the voltage on the analog output. The system is powered with the voltage from 2.5 V to 5 V. It has digital and analog output, making it compatible with most of the commissioning modules including Raspberry Pi and Arduino.
OverviewApplications
- Sensitive for carbon monoxide
- Output voltage boosts along with the concentration of the measured gases increases
- Fast response and recovery
- Adjustable sensitivity
- Signal output indicator
Specifications
- Power: 2.5V ~ 5.0V
- Dimension: 40.0mm * 21.0mm
- Mounting holes size: 2.0mm
Applications- Carbon monoxide monitor
Choose Quantity
Product Details
The digital output D0
With the help of placed on the reverse side of the board, potentiometer, set is the threshold, exceeding of which, causes the output D0 changing from a high to a low status. The pin D0 can be linked directly with a microcontroller or commissioning set, including Arduino, or for example, a module with a buzzer, which will signal a too low or too high level of unwanted gases in the air
Analog output A0
The sensor has an analog output A0, which must be connected to the pin of the converter A/D (analog input in Arduino). This will allow you to measure the proportional voltage signal and more accurately determine the concentration.
