BNC Plug, Male, Straight, 50Ω, for Cable B9907, RG141, RG58, URM43, URM76
BD 0.900

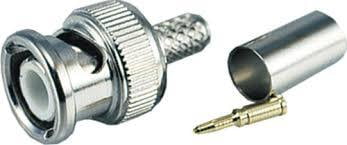

The 13-10-1 RG174 from Multicomp Pro is a BNC straight plug connector suitable for RG 174 cables. The centre contact has to be assembled with the cable inner conductor by soldering or crimping and the ferrule needs to be crimped on the cable for transmission and fixing. BNC coaxial connectors are one of the world's most popular RF connectors. This is a miniature, light-weight connector which can operate satisfactorily up to 11GHz. The BNC is typically used in applications from DC to 4GHz and yield low reflection in this frequency range. BNC connectors are the most prevalent in computer networks, audio, data processing and telecommunications equipment because of their size and relatively low installation cost.
- Gold plated centre contact and nickel plated body finish
- PTFE insulation
- Connector interface per MIL-STD-348 A standards
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
- Antennas
- Broadcast (75 Ω)
- Telecommunications
- Automotive
- Computers/LANs
- Medical Equipment
- Satcom
- Base Stations
- Cable Modems
- Instrumentation
- Military/Aerospace
Choose Quantity
Product Details
Features and Benefits
- Bayonet coupling mechanism provides positive, quick mating and un-mating
- 50 and 75 ohm impedance designs allow customers to match impedance to system requirements
- Connectors are available for military, industrial and commercial applications
- Designs available for many common coaxial cable types
